Product Details:
|
| Product Name: | X Ray Inspection Equipment | Pixel Pitch: | 85um |
|---|---|---|---|
| Inspection Area: | 600mmx600mm | Size Detection: | Point To Point& Line To Line Angle Measure |
| Bubble Detection: | Bubble Can Be Measured And Inspected For Cracks | Power Supply Mode: | AC110-230VAC, 50/60Hz |
| Highlight: | CSP LED X Ray Inspection Equipment,85um Pixel X Ray Inspection Equipment,CSP LED industrial xray equipment |
||
CNC programming
1. Simply mouse click to write detection program.
2. Sample tablecan be positioned in X, Y direction; X-ray optical tube and detector can be positioned in Z direction.
3. Software set voltage and current.
4. Image settings: brightness, contrast, auto gain and exposure.
5. Users can set the pause time for program switching.
6. Anti-collision system can meet the maximum tilt and observation.

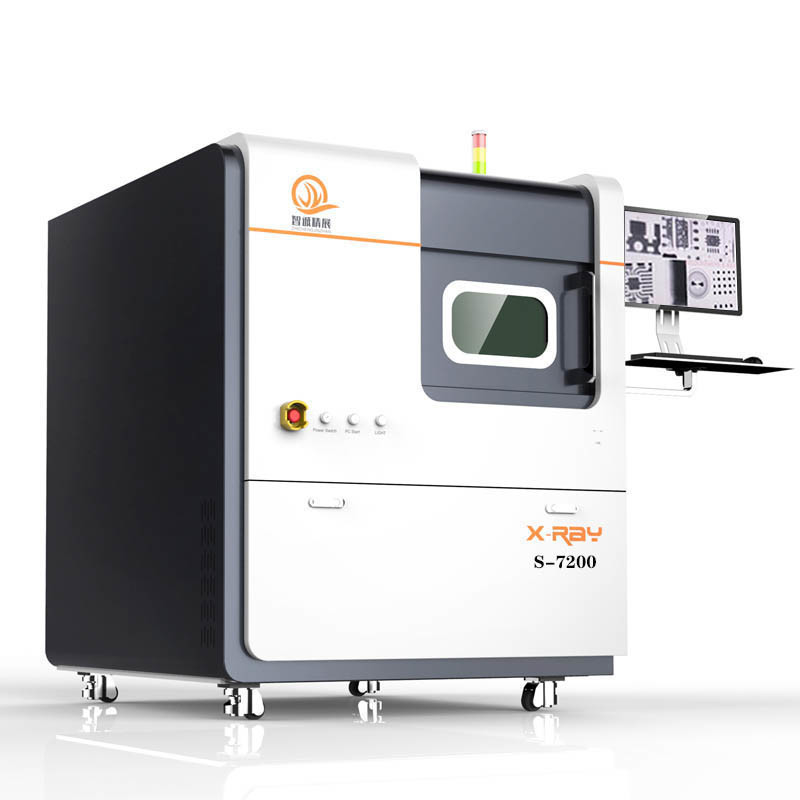

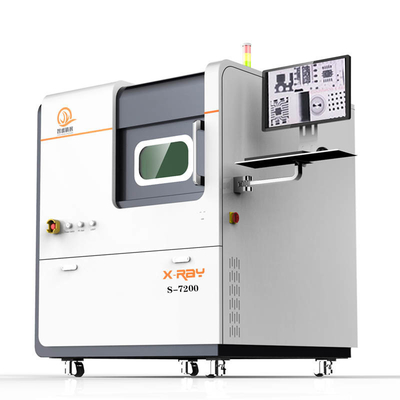

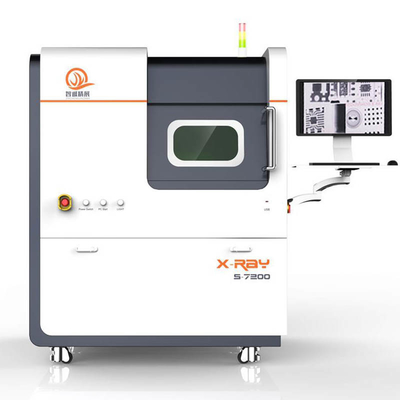

| Item | S-7200 | |
| Panel Detector | Pixel Pitch | 85um |
| Inspection area | 600mmx600mm | |
| Detector Tile Angle | 70 Degree | |
|
X-Ray Optical Tube |
Optical Tube Style | Closed tube |
| Optical Tube voltage | 90KV,100KV,130KV (optional) | |
| Optical Tube current | 250UA | |
| Optical Tube focus size | 5um | |
| Optical Tube Power | 8W | |
| System Magnification | 1200X | |
| Geometric Magnification | 125X | |
| Sample Table | X-axis | 520mm |
| Y-axis | 520mm | |
| Z1-axis | 380mm | |
| Z2-axis | 380mm | |
| Platform Deadweight | 10KG | |
| Software Function | Size Detection | Point to point& Line to line angle measure |
| Bubble Detection | Bubble can be measured and inspected for cracks | |
| Power | Power supply mode | AC110-230VAC, 50/60Hz |
|
Computer |
Brand | Dell |
| Operation System | Windows10 | |
| Display | 24” LCD | |
| CPU | Intel i5 6500 | |
| Radiation Safety Standard | < 1uSv/hr.(International standard) |
Radiation leakage dose＜1µSv/h (GB15208.1～2005) |
|
X-Ray Dimensions |
Dimension | 1500mmX1300mmX1800mm |
| Weight | 1500KG | |
|
Warranty
|
Two years | Two years warranty |
