Product Details:
|
| Product Name: | Industrial X Ray Machine | Pixel Pitch: | 85um |
|---|---|---|---|
| Inspection Area: | 600mmx600mm | Detector Tile Angle: | 70 Degree |
| Optical Tube Style: | Closed Tube | Optical Tube Voltage: | 90KV,100KV,130KV |
| Highlight: | BGA CSP Industrial X Ray Machine,90KV Industrial X Ray Machine,BGA CSP X Ray Inspection Machine |
||
Fully automatic BGA detection program
1.Simple mouse click to write program.
2.Automatic analysis on diameter, proportion of cavity, area and roundness of BGA.
3.Automatic BGA detection program has high repeatability of detection results for process control.
4.The test results will be displayed on the screen and can be output to excel for review.
CNC programming
1. Simply mouse click to write detection program.
2. Sample tablecan be positioned in X, Y direction; X-ray optical tube and detector can be positioned in Z direction.
3. Software set voltage and current.
4. Image settings: brightness, contrast, auto gain and exposure.
5. Users can set the pause time for program switching.
6. Anti-collision system can meet the maximum tilt and observation.

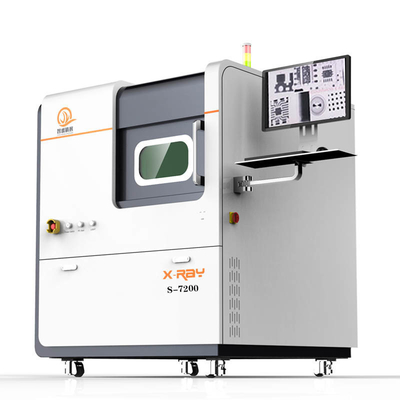

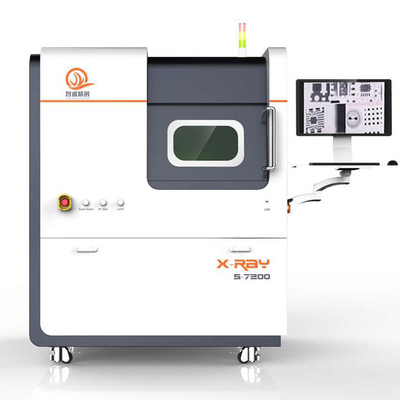

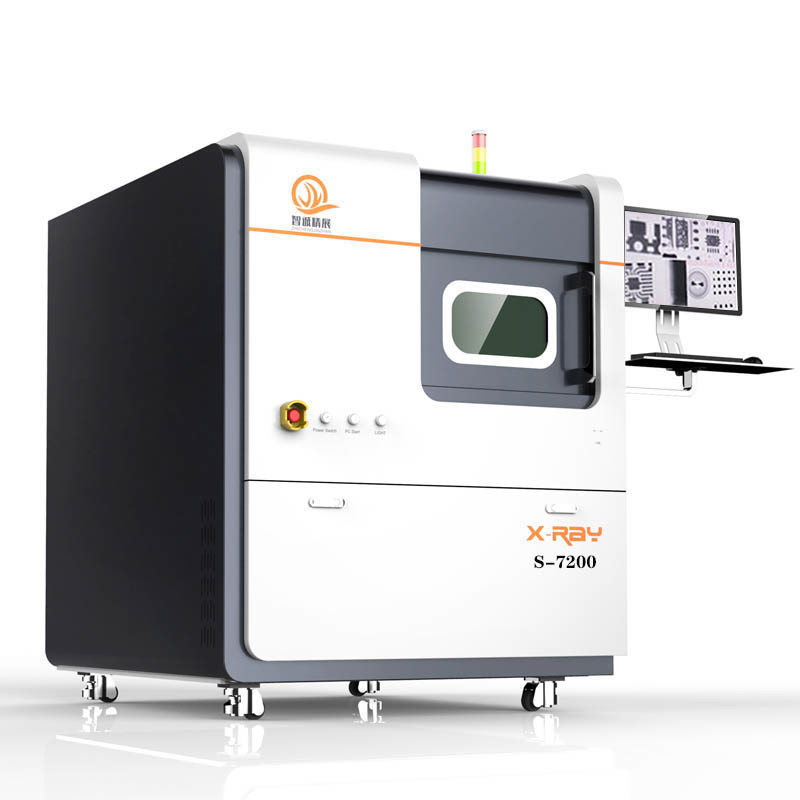

| Item | S-7200 | |
| Panel Detector | Pixel Pitch | 85um |
| Inspection area | 600mmx600mm | |
| Detector Tile Angle | 70 Degree | |
|
X-Ray Optical Tube |
Optical Tube Style | Closed tube |
| Optical Tube voltage | 90KV,100KV,130KV (optional) | |
| Optical Tube current | 250UA | |
| Optical Tube focus size | 5um | |
| Optical Tube Power | 8W | |
| System Magnification | 1200X | |
| Geometric Magnification | 125X | |
| Sample Table | X-axis | 520mm |
| Y-axis | 520mm | |
| Z1-axis | 380mm | |
| Z2-axis | 380mm | |
| Platform Deadweight | 10KG | |
| Software Function | Size Detection | Point to point& Line to line angle measure |
| Bubble Detection | Bubble can be measured and inspected for cracks | |
| Power | Power supply mode | AC110-230VAC, 50/60Hz |
|
Computer |
Brand | Dell |
| Operation System | Windows10 | |
| Display | 24” LCD | |
| CPU | Intel i5 6500 | |
| Radiation Safety Standard | < 1uSv/hr.(International standard) |
Radiation leakage dose＜1µSv/h (GB15208.1～2005) |
|
X-Ray Dimensions |
Dimension | 1500mmX1300mmX1800mm |
| Weight | 1500KG | |
|
Warranty
|
Two years | Two years warranty |
