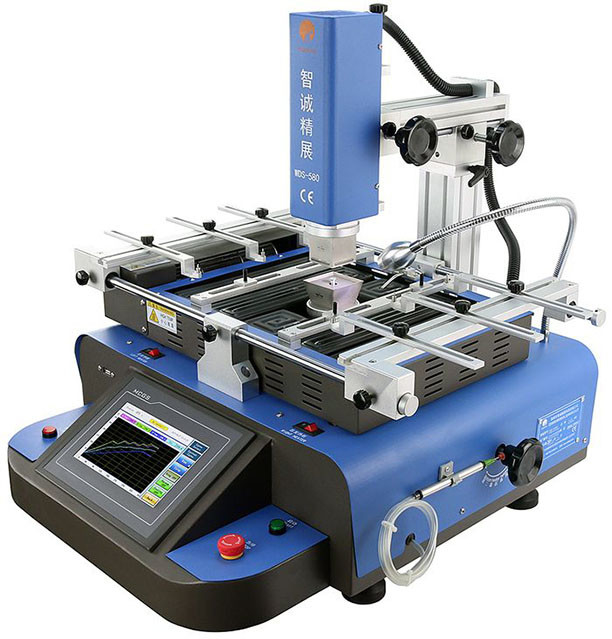

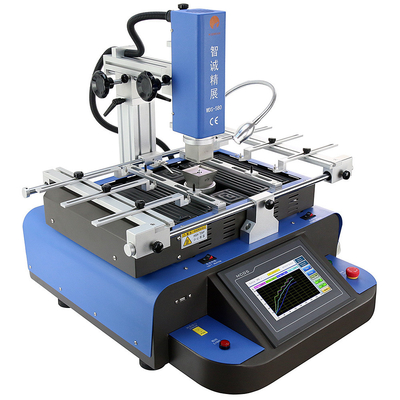

WDS 580 IC Remove Machine

Name: WDS 580 IC Remove Machine
Brand: Shenzhen Wisdomshow Technology Co.,ltd
Price: 240.00 USD
Availability: InStock

All Products

X Ray Inspection Machine
(12)

Electronics X Ray Machine
(12)

Industrial X Ray Machine
(14)

X Ray Component Counter
(3)

Semiconductor Inspection Equipment
(17)

SMT X Ray Machine
(18)

BGA X Ray Machine
(12)

Automatic BGA Rework Station
(13)

BGA Reballing Machine
(19)

Infrared BGA Rework Station
(18)

BGA Welding Machine
(17)

Laptop BGA Machine
(27)

Best Products

0.8mm 8cm BGA Reballing Machine

WDS 580 IC Remove Machine

Large Image : WDS 580 IC Remove Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	WISDOMSHOW
Certification:	CE

Payment & Shipping Terms:

Price:	$1,480.00/Sets
Packaging Details:	standard export wooden box

Contact Now

WDS 580 IC Remove Machine

Description

Condition:	New	Machine Type:	Welding Positioner
Applicable Industries:	Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works , Energy & Mining	Showroom Location:	None
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Hot Product 2019	Warranty Of Core Components:	1 Year
Core Components:	Infrared Preheating Board	Warranty:	1 Year
Key Selling Points:	Bga Motherboard Repair	Weight (KG):	60
Voltage:	220/110V	Current:	50/60hz
Rated Capacity:	N	Rated Duty Cycle:	N
Dimensions:	L500mmW590mmH650mm	Usage:	Mobile Phone/laptop BGA/IC Rework And Repair
Function:	Repair Motherboards	Electrical Material:	Touch Screen+Temperature Control Module+PLC Control
Total Power:	4800W	PCB Size:	Max 400mm370mm Min 10mm10mm
BGA Chip Size:	Max 60mm60mm Min 1mm1mm	Power:	Ac220v ±10%,50hz
Heater Power:	Upper Temp.one 800w,second Temp.zone1200w,IR Temp.zone 2700w	Weight Of Machine:	40kg
Operation Type:	Manual	Positioning Way:	V-shape Card Slot +Universal Jigs
After Warranty Service:	Video Technical Support, Online Support	Local Service Location:	None
After-sales Service Provided:	Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support
Highlight:	WDS 580 IC Remove Machine , 3 zones ic remove machine , 3 zones SMT soldering station

Economical WDS-580 Stable temperature controller mini bga machine for refurbished laptops

Product Description

Our BGA Rework Station/ BGA reballing station are widely used to replace and repair the BGA chip in laptop, mobile phone,xbox360,ps3,etc.
The main user is repairing shops and factory to provide the after-sales service and rework.

Operation System

♦Manual mode.

♦Can solder, desolder, mount, pick and replace chip.

♦User-friendly.

Strict Temperature Control System

♦8 segments rising temperature/constant time / temperature rising slope, it can save hundreds of groups temperature curve.

♦It adopting high accuracy K-type thermocouple close-loop control.

♦The external sensor can detect temperature precisely, analyze and calibrate the real temperature curve accurately at any time.

Safety System

♦With CE certification.

♦With automatic power-off protection device when abnormal accident happens and double over-temp protection function.

How to separate BGA chip from motherboard? How to replace a new BGA chip?

Repair steps:
1) Separate the BGA chip from motherboard –we called desoldering
2) Clean Pad
3) Reballing or replace a new BGA chip directly
4) Alignment/Positioning – Depend on experience ,silk frame ,optical camera
5) replace a new BGA chip - we called Soldering

Product Paramenters

Power supply	AC 220V±10％ 50Hz
Total power	4800W
Heater power	Upper temp.zone 800W,second temp.zone 1200W,IR temp.zone 2700W(1200W controlled)
Electrical material	Touch screen+Temperature control module+PLC control
Locating way	V-shape card slot+Universal jigs
PCB size	Max 400mm370mm Min 10mm10mm
Applicable chips	Max 60mm60mm Min 1mm1mm
PCB thickness	0.3-5mm
Overall dimension	L500mmW590mmH650mm
Weight of machine	About 40KG
Usage	Repair chips / phone motherboard etc.

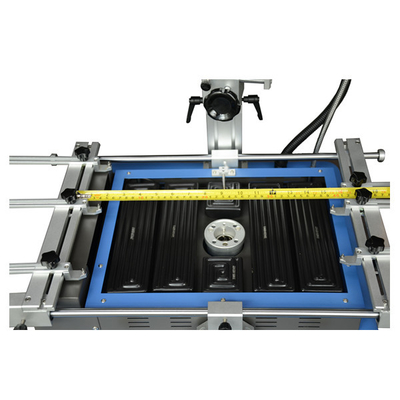

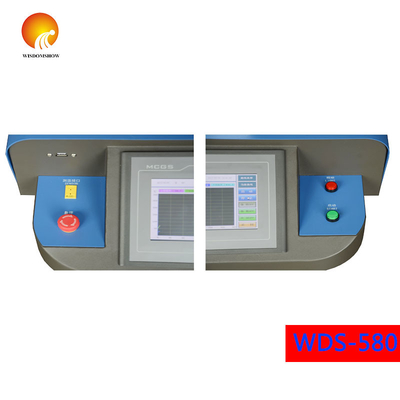

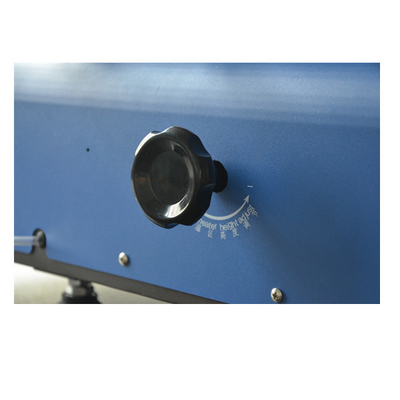

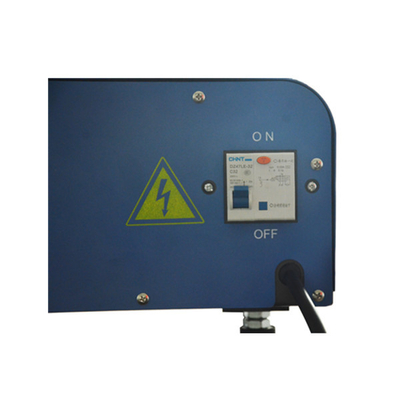

Detailed Images

Packing&Shipping

1, Standard Export Wooden cases
2, Delivery in 2 workdays after payment confirm;
3, Shipping by TNT,DHL,FEDEX , or by air or by sea
4, Loading port: Shenzhen or Hongkong.

Company Introduction

Shenzhen Wisdomshow Technology Co., LTD.
** Professional BGA Rework Station Manufacturer **

1. Following the business philosophy of "professional, integrity, excellence, customer first";
2. One of the leading manufacturers of BGA rework stations;
3. Over 10 years' experience in the BGA rework industry;
4. All models have passed the CE Certificate and ISO;
5. 100% QC inspection before shipment;
6. Customized brand logo is acceptable;
7. Owning a large market share in the world;

Our Services & Advantages

1. 24 hours technical support by email or calling;
2. Warranty:one year free,but all the other relative cost should be on the buyer's account;
3. Technology Support : Provide Demo operation video for training ;If you have time,welcome to our company,we will arrange engineers to show you the operation;
4.Friendly English User manual provided; Good and professional after-sales service;
5. Give great discount to AGENCY to ensure agents profit.

Buyer Feedback

Our Customers' Voice:
1.Hi mate, your best price and high purity product is so competitive in my country , this let me make much profit , my customers are really like it . cooperate with you is so wonderful ! thank you ! ---------Richard---Turkey

2.i have received my products , your packing is do discreet and perfect , it really amazed me .i will order more from you as soon as possible. thanks a lot. -----------Robet--Australia

3.i have cooperated with you for many times , your product quality is so great , that is why i still buy the products from you
.thank you . ------------- Corentin ---Brazil

Order Now

If any questions please send INQUIRY or CHAT with us ,
We will be glad to service you !
Now you can order freely!!!
Plz Contact me as below guide, we are glad to give you the best price!
