MCGS Infrared BGA Rework Station

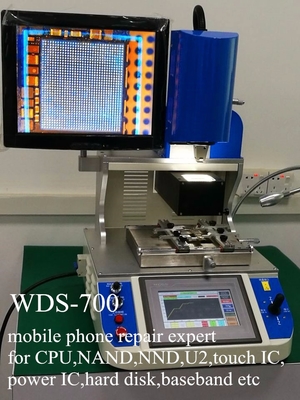

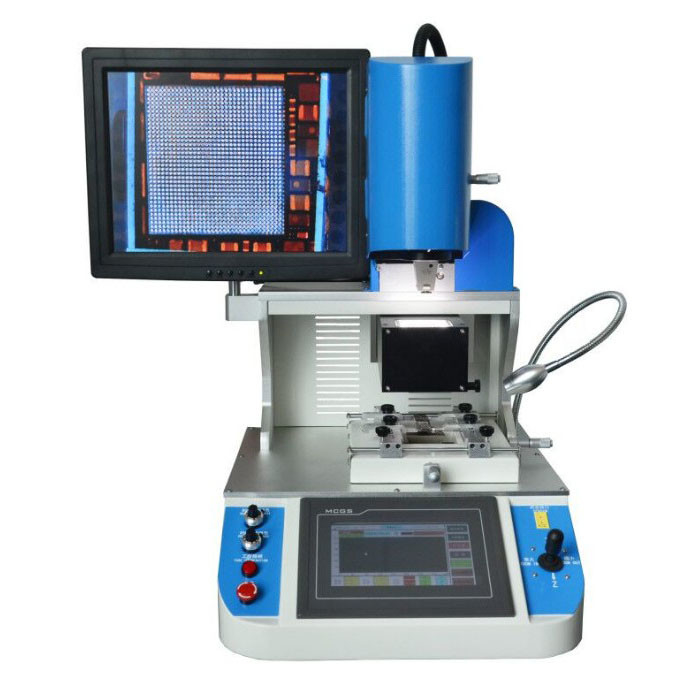

Optical alignment WDS-700 mcgs bga rework station for Iphone cpu pick and replacement

Specification of WDS-700 mcgs bga rework station

♦♦♦Independent 2 heating zones temperature control system
1.The upper and lower hot air heating,which can heat up at the same time from the top of he component to the bottom of the PCB;temperature precision control within ±1℃.8 segment temperature control independently.
2.Adopted high precision K-type thermocouple close-loop control and PID parameter self-setting system;4 temperature curves can be displayed with instant curve analysis function and multi-group user data can be saved;temperature can be tested precisely through external measurement interface,curves can be analysed,set and correct on the touch screen at any time.Factory price iphone icloud removal machine WDS-700 motherboard rework station for iphone 6 s

♦♦♦Precision optical alignment system
Using high definition and adjustable CCD color optical alignment system,beam split,amplification,lessening,fine adjustment and auto focus with the function that automatic color aberration resolution and brightness adjustment,adjustable image contrast;equipped with 15 ” high definition LCD monitor.

♦♦♦Multi-functional and humanized operation system

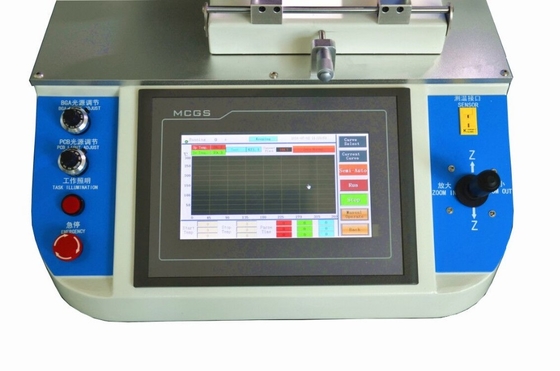

1.Adopting the HD touch human-machine interface;upper heating head and mounting head designed 2 in 1;providing many kinds of titanium alloy BGA tuyere can be rotated in 360 degree for easy installation and replacement.Factory price iphone icloud removal machine WDS-700 motherboard rework station for iphone 6 s
2.X,Y and R angle adopted micrometer fine-tuning,accuracy locating,precision can reach ±0.01mm.

♦♦♦Superior safety protection function
With the alarm function, after the BGA welding the machine can alarm by itself.In the case of temperature abuse, the circuit can power off automatically with the double over-temperature protection.Temperature parameter having password protection to prevent any modification.

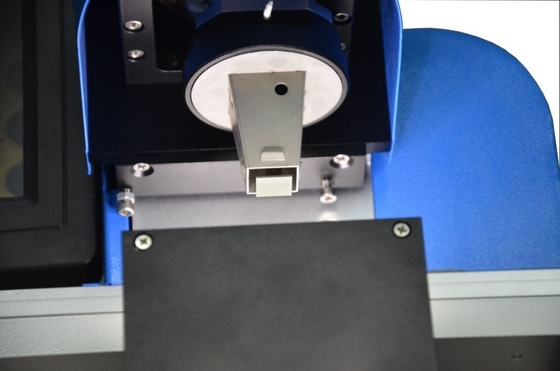

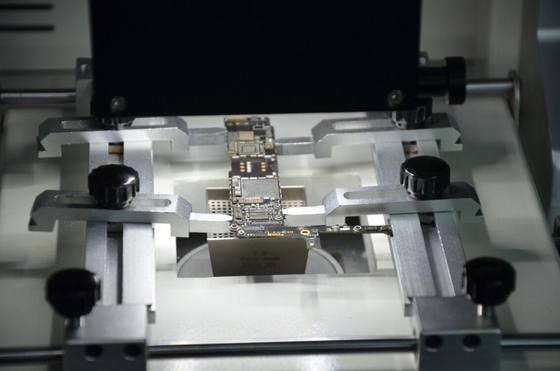

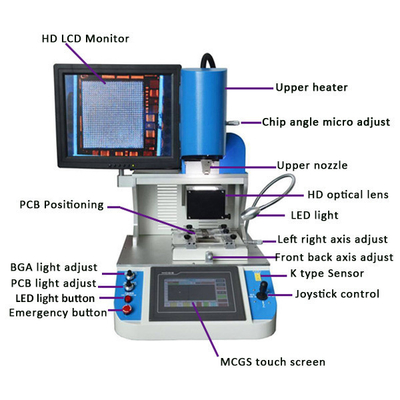

Detail images of WDS700 mcgs bga rework station

Parameters of WDS-700 mcgs bga rework station

Accessories

1,Standard export strong wooden package for iphone icloud removal
2,Delivery in 2 workdays after payment confirm;
3,Shipping by TNT, UPS ,DHL,FEDEX (IE), Aramex or by air or by sea
4,Loading Port: ShenZhen or Hongkong

Why WDS?

1. We are the Manufactuer = own factory+ machine design+Sheet metal produced by ourself +spray the powder+ strong assemble the machine team + packaging+free training;
2. Logo/Brand:Customer's designs and logos are welcome,we can silk-print your own logo company;
3. HUAWEI,TCL,ZTE,MEIZU,KONKA,LENOVO,FOXCONN vendor;
4. Have good market in Korea,Japan,NorthAfrica,Vietnam,Brazil,Turkey,India,Mexico and South Asia,The Mid-East and European countries;
5. 100% NEW from WDS factory;
6. Over 20 R&D engineers, with 10 year experience;
7. Over 100000 Global User;
8. All models approved CE;
9. 100% QC inspect before shipment;

10. High quality & competitive price.

*Payment terms
-T/T :30% deposit, Balance before shipment
-Western Union
-Paypal
-Aliexpress
-Escrow
*BGA application
-Laptop notebook motherboard bga rework and repair;
-Game consoles applications such as xbox Ps3 Wii bga rework and repair;
-Large circuit board maintenance, and mobile phone motherboard such small small-sized chip.
*Training & Warranty
Life-time free training of operation and maintenance.
Warranty:lifetime free service ,one year warranty. the 1st year is free,ONLY spare parts charged after the 1st year. Reply within 24hours,7 days/week.
Training and warranty can be from the overseas local office or Shenzhen Wisdomshow office directly.
