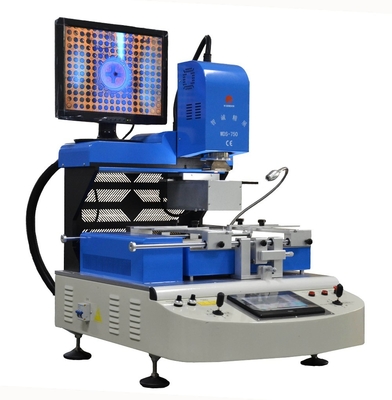

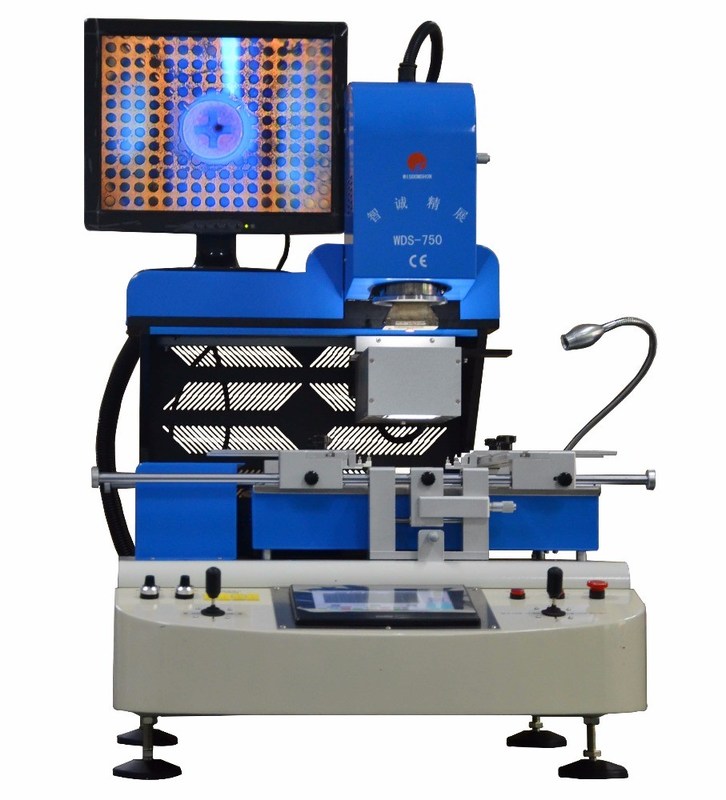

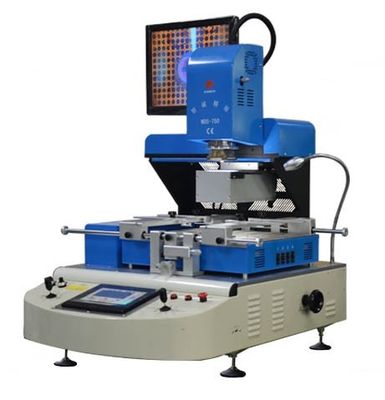

PLC Control BGA Welding Machine

Product Application

Apply to repair chipsets in laptop , mobile phone, TV, Satellite receiver , MID, CCD camera,xbox360,  xbox360, PSP, PS2, PS3,etc. The main user is repairing shops and factory to provide the after-sales service and rework.

                      Main Technical Parameters

Functional Characteristics

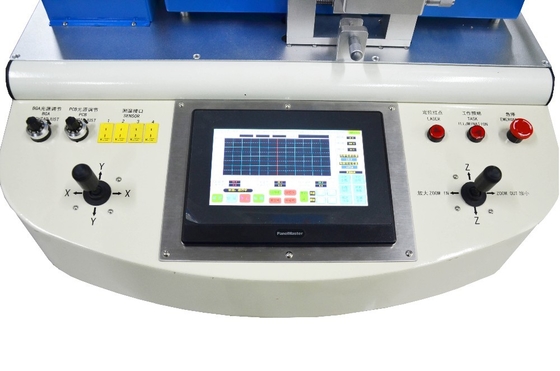

Touch screen with human interface,heating time,heating temperature,reflow temperature rate,advanced alarming,vacuum time all can set inside the touch screen,simple operation,easy learn.

PLC import from Japan,temperature control module use China famous brand,display three temperature curves,4pcs independent temperature sensor,which can measure the different place temperature of the chips,make sure the rework rate.

Three independent heating temperature zone,each heating temperature zone can independently set the heating temperature ,heating time,rate;six heating temperature sections,Simulate the reflow oven heating mode preheating,constant,warming,soldering,reflow soldering,cooling.

Auto feed chips,pick up chips,blowing chips;auto recognition chips place during alignment Multifunction model weld,remove,mount,manual,realize semi auto and auto function ,meet customer’s requirement

High precision K-type Closed Loop import from USA together with our company special heating way,the soldering rang of temperature within±1 degree.

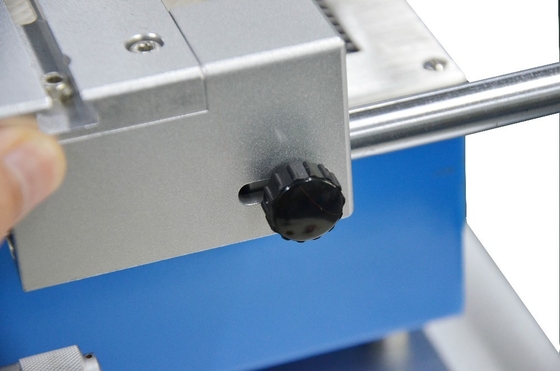

Imported optical alignment system with 15’’high definition monitor;high precision micrometer adjust X/Y/R axis;make sure the alignment precision within 0.01-0.02mm.

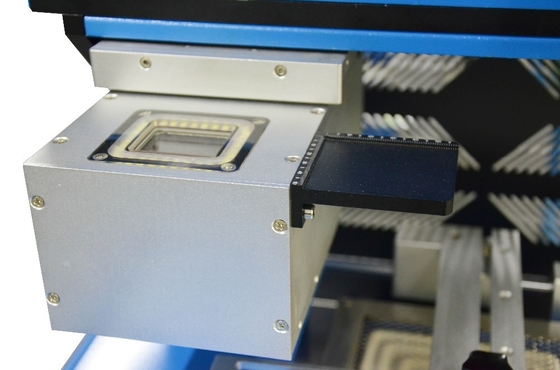

Top heater and mounting heater design 2 in 1 which can make the mounting more precision;there are many sizes of BGA nozzles which can meet different chips sizes,BGA nozzles can easy change,we accept customize.

High automatic and precision,Completely avoid human operation error; it is good for reworking lead free craft and double BGA,QFN,QFP,capacitance-type resistor components which can achieve good result.

Additional monitoring camera which can observe the solder ball melting and easy to check the temperature curve and the soldering result(optional function )

Thermo-couple Ports

Screen

WISDOMSHOW Technology is based in Shenzhen, China, We are manufacturer for 11 years, and has been the Biggest Factory in the BGA Rework field in China. All material is of high quality under inspection and control,and all BGA Station go through 2 times of test before shipment.  High Quality Assurance is our task and also what we are doing now.


Certifications

1,Standard export wooden package for bga rework station;

2,Delivery in 3 workdays after payment confirm;

3,Shipping by TNT, UPS ,DHL,FEDEX (IE), Aramex or by air or by sea;

4,Loading Port: Shenzhen or Hongkong.

1.Your inquiry will be replied in 12 hours.

2.Original Manufacture to customers, with competitive price.

3.We provide one year warranty, free training.

4.Well-trained and Professional after-sales service team to support you.

5.Manual and Demo video CD will package with machine, It will show you how to use machine step by step.

6.Payment terms ,like T/T, Westerunion is choosed by customers.

1: Why choose us?

First of all, quick response, save your time, time equals money, so we save money for you. see, you are already saving money, even you contact us.

2: Should I worry about the quality?

Dear, friend, all the product before shipping will be tested, all the product is good quality.and all the product be pass the CE and ISO certification.

3: How's about the transportation?

If you ask this question. DHL, FedEx, UPS, TNT, and so on, tell us which one you don't like, we will keep that in mind.

4: How's after-sale service?

Dear, friend, we have after-sale center, if any problem, please contact me freely.our machine warranty is 1 year.Lifelong technical support and free online training.

That's ok, thank you for your reading.
