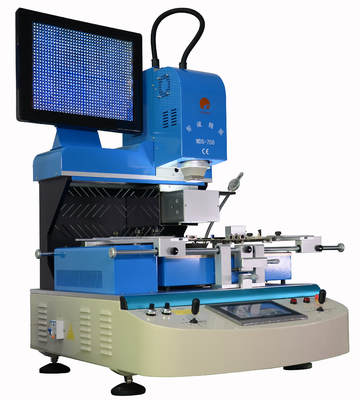

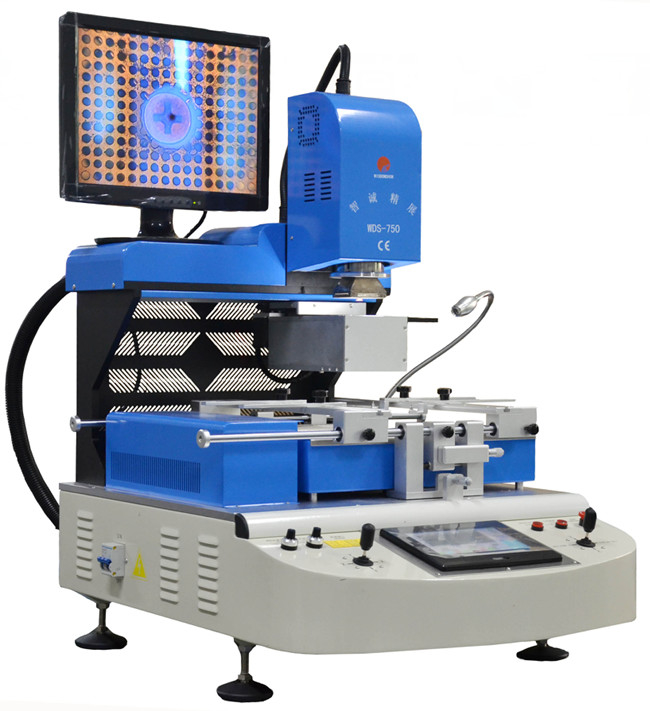

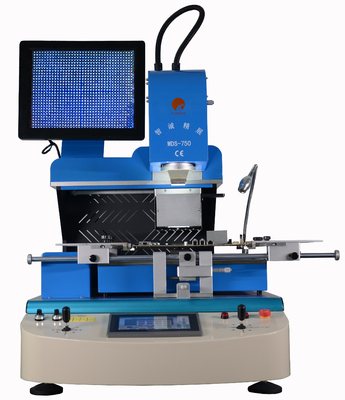

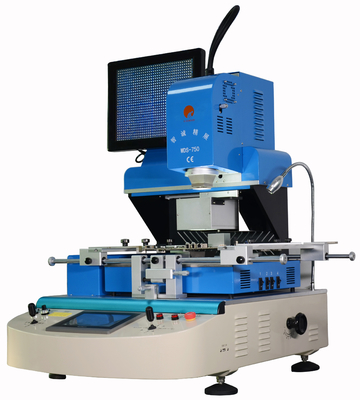

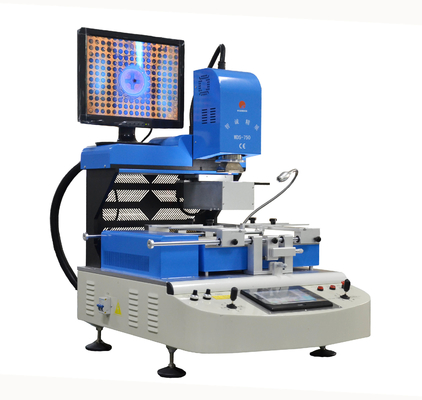

6800W 220V Automatic BGA Rework Station

Specification and Feature:

• Touch screen with human interface,heating time,heating temperature,reflow temperature rate,advanced alarming,vacuum time all can set inside the touch screen,simple operation,easy learn.
• PLC import from Japan,temperature control module use China famous brand,display three temperature curves,4pcs independent temperature sensor,which can measure the different place temperature of the chips,make sure the rework rate.
• High precision K-type Closed Loop import from USA together with our company special heating way,the soldering rang of temperature within±1 degree
• Imported optical alignment system with 15’’high definition monitor;high precision micrometer adjust X/Y/R axis;make sure the alignment precision within 0.01-0.02mm.
• Additional monitoring camera which can observe the solder ball melting and easy to check the temperature curve and the soldering result(optional function )

Technology Parameter:
