Hand Operation BGA Reballing Machine IR Chip Ic Repairing For 400*370mm PCB

Cheapest hand operation bga rework station wds580 IR chip ic repair machine

Parameter of WDS-580 IR chip ic repair machine

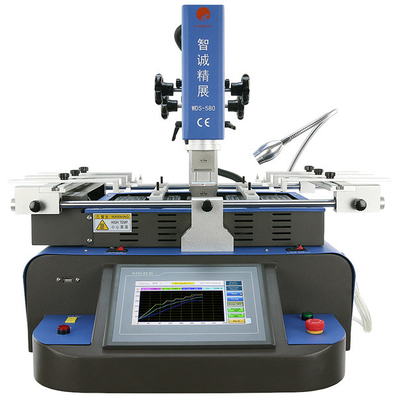

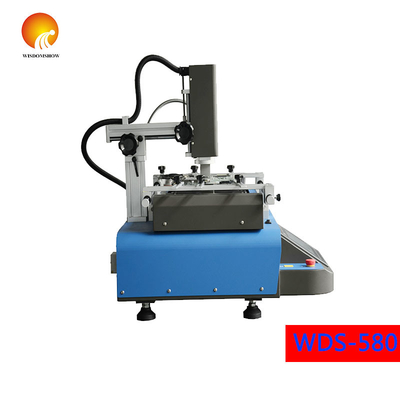

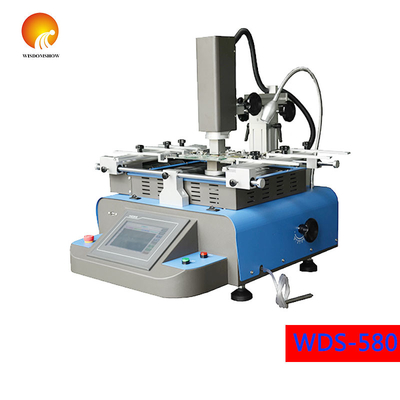

Photos of WDS-580 IR chip ic repair machine

Features of WDS-580 IR chip ic repair machine

1.  Adopted with Linear slider, so all the three axles (X, Y, and Z) can do fine tuning and quick orientation with perfect positioning accuracy and speedily maneuverability.

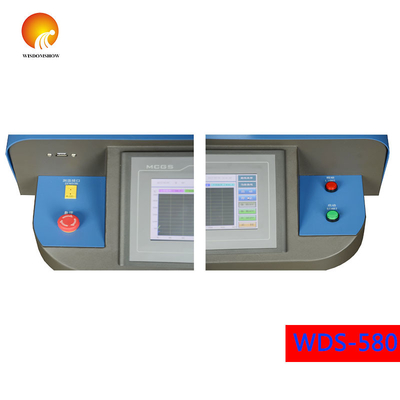

2. Equipped with touch panel interface and PLC controlling to ensure it work stably and reliably. And it can storage multiple temperature profiling data of users. With password protection and modification function while power on. The temperature profiles will be displayed on the touch screen.
3. Three temperature zones to heat up independently, hot air heat up between up and down zones, IR heat in the bottom, temperature precise control is in±3℃.The upper temperature zone can be moved freely according to needs, the second zone can be adjusted up and down. The top and bottom heaters can be set several segments control at the same time. IR heating zone can be adjusted output power in the light of operation requirements.

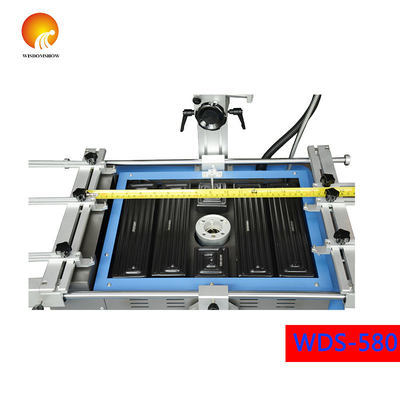

4. The hot air nozzle can be rotated in 360 degree, the IR heater in the bottom can heat up the PCB board uniformly.
5. High accuracy K-type thermocouple closed-loop controlling. It can test temperature accurately through external temperature measurement interface, PCB board positioned by closed V-shape slot. The flexible and convenient universal jigs can prevent any damage or PCB deformation as well as it is suitable for all size of BGA package.
6. Large power fan to cool down the PCB quickly. The built-in vacuum pump and external vacuum nozzle is able to take BGA chips out easily.
7. Having alarm prompt function after welding is done, specially added early warning function for convenient operation.

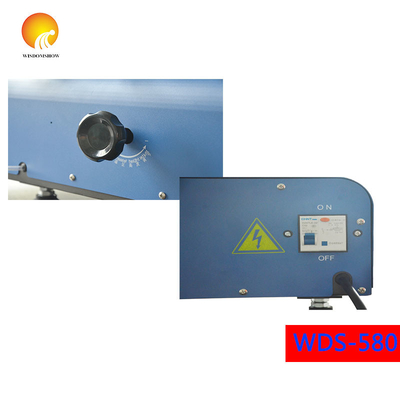

8. It has Passed CE certificate.  It is equipped with emergency stop switch and protection equipment to power off automatically when abnormal accident happened. Under this situation that temperature is out of control, circuit can automatically cut off the power with double over temperature protection function.

Application of IR chip ic repair machine
1) Laptop / Notebook/ Computer motherboard repair.
2) Playstation / XBOX 360 and other game console repair.
3) Iphone seris such as 4/ 4s / 5 / 5s/ 6 / 6s / 6s plus/ 7 / 8 and other smart phones' motherboard repairing.
4) TV / Video / ipad mainboard repai.
5) SMD/ SMT / IC BGA rework

• Powerful teams,meet your requirement and provide the life-time service for you.

What Service We Offer
1.Your inquiry will be replied in 24 hours ;
2.Offer free spare parts and service within one year of warranty,but all the other relative cost should be on the buyer's account;
3.Technology Support :Provide Demo operation video for training ;If you have time,welcome to our company,will arrange engineers to show you the operation;
4.Good and professional after-sales service;
5.Give great discount to AGENCY to ensure agents profit.

BGA Reballing Kits Tool

FAQ

Q1:Are you a trading company or factory?

A: We are a manufacturer of professional BGA repair and rework station/machines in Shenzhen,Guangdong.

 Q2: How many days can we get the machines? How many delivery ways can we choose?

 A: We can ship the machines within 2-3 days after the full payment but the specific time is decided by the exact shipping way you chose.

 3-7 days by DHL,Fedex, UPS,etc (Door to Door Service)

 3-5 days by Air to your airport (Door to Airport Service )

 25-35 days by Sea to the seaport(Port to Port Service)

Q3: How about the package ? Is it safe during the delivery ?

 A: All BGA rework machines are well packed by standard strong wooden carton with foam inside.

Q4: Do you provide warranty ? How about the after-sales service ?

 A: We have professional after-sales team, and we supply one-year warranty free for spare parts and lifetime technical support.

If you have any questions,please contact us freely.

Q5: Is it easy to operate the BGA rework station machine? Do you provide a user manual to help us ?

 A: Yes, we will provide the English user manual.The machine is humanized designed, so do not worry, and it is easy to operate.

Q6: What is the payment way ?

We accept the payment terms: Bank transfer, Wester Union, Moneygram, Paypal, etc.
