CPU Motherboards Repair BGA Reballing Machine 110V-240V Tweezer Tip

Large Image : CPU Motherboards Repair BGA Reballing Machine 110V-240V Tweezer Tip

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	WISDOMSHOW
Model Number:	wds-520

Payment & Shipping Terms:

Price:	$1,280.00/Sets
Packaging Details:	standard export wooden box

Contact Now

CPU Motherboards Repair BGA Reballing Machine 110V-240V Tweezer Tip

Description

Warranty:	1year	Voltage:	220V/50HZ, 110V-240V
Current:	Dependable	Customized Support:	OEM
Type:	Digital	Temperature Control Accuracy:	±2℃
Tip Type:	Tweezer	Machine Type:	Welding Positioner
Function:	Repair Chips	Electrical Material:	Touch Screen+Temperature Control Module+microcontrollers
Total Power:	3800W	PCB Size:	Max 300mm280mm Min 10mm10mm
BGA Chip Size:	Max 60mm60mm Min 1mm1mm	Power:	Ac220v ±10%,50hz
PCB Thickness:	0.3-5mm	Dimensions:	L460mmW480mmH500mm
High Light:	Motherboards Repair BGA Reballing Machine , BGA Reballing Machine 110V 240V , 110V 240V cpu reballing machine

Manual Hot Air Ir bga desoldering station for iphone 5s motherboard WDS-520 smd repair tool

Product Description

Our BGA Rework Station/ BGA reballing station: to replace and repair the BGA chip in laptop, mobile phone.
The main user : repairing shops and factory to provide the after-sales service and rework.

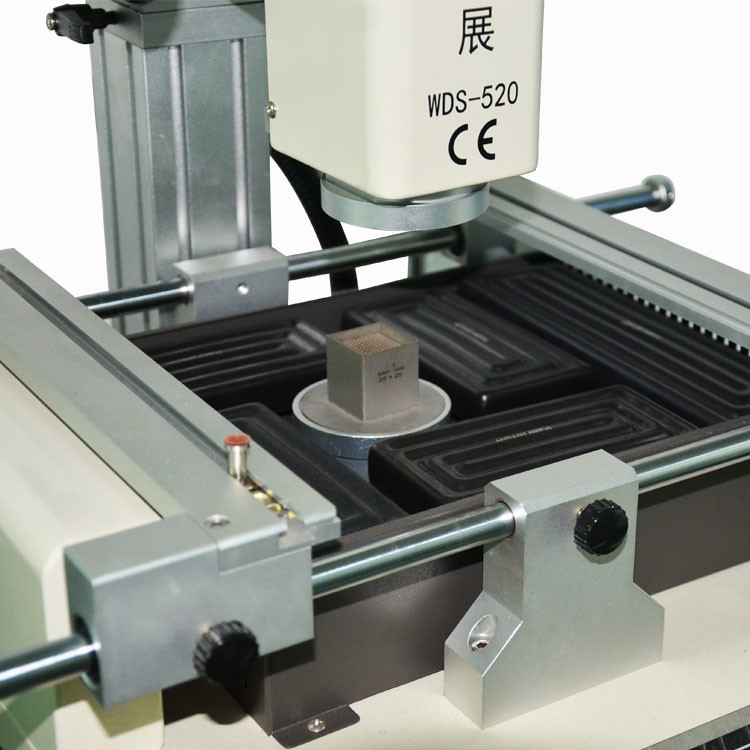

Manual BGA Rework Station

Model:WDS-520

♦Repair Success Rate:More Than 99%
♦ Using The Industrial Touch Screen

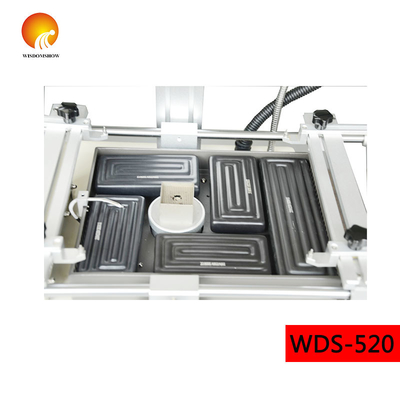

♦ Independent 3 Heating Zones, Hot Air Heating/ Infrared Preheat. (temperature accuracy ± 2℃)
♦ With CE Certification

Main Features

Operation System

♦Manual mode.

♦ Can solder, desolder, mount, pick and replace chip.

♦ User-friendly.

Strict Temperature Control System

♦8 segments rising temperature/constant time / temperature rising slope, it can save hundreds of groups temperature curve.

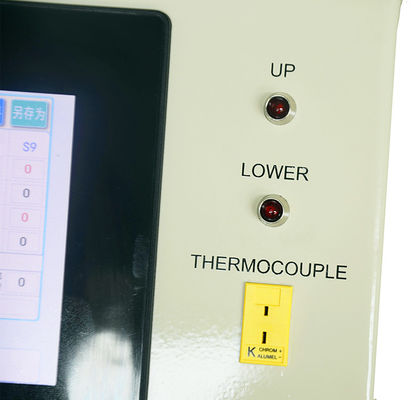

♦It adopts high accuracy K-type thermocouple close-loop control.

♦The external sensor can detect temperature precisely, analyze and calibrate the real temperature curve accurately at any time.

Safety System

♦With CE certification.

♦With automatic power-off protection device when abnormal accident happens and double over-temp protection function.

How to separate BGA chip from motherboard?
How to replace a new BGA chip?

Repair steps:
1) Separate the BGA chip from motherboard –we called desoldering
2) Clean Pad
3) Reballing or replace a new BGA chip directly
4) Alignment/Positioning – Depend on experience ,silk frame ,optical camera
5) replace a new BGA chip - we called Soldering

Product Paramenters

Power supply	AC 220V±10％ 50Hz
Total power	3800W
Heater power	Upper temp.zone 800W,second temp.zone 1200W,IR temp.zone 1800W(1200W controlled)
Electrical material	Touch screen+Temperature control module+microcontrollers
Locating way	V-shape card slot+Universal jigs
PCB size	Max 300mm280mm Min 10mm10mm
Applicable chips	Max 60mm60mm Min 1mm1mm
PCB thickness	0.3-5mm
Overall dimension	L460mmW480mmH500mm
Weight of machine	20KG
Usage	Repair chips / phone motherboard etc.

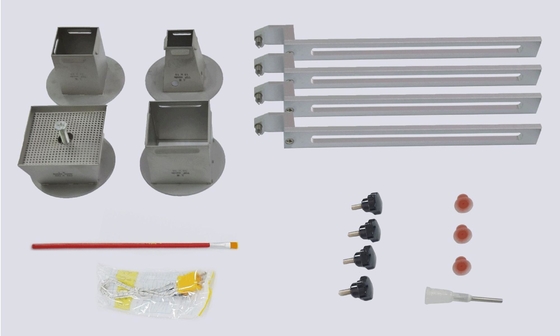

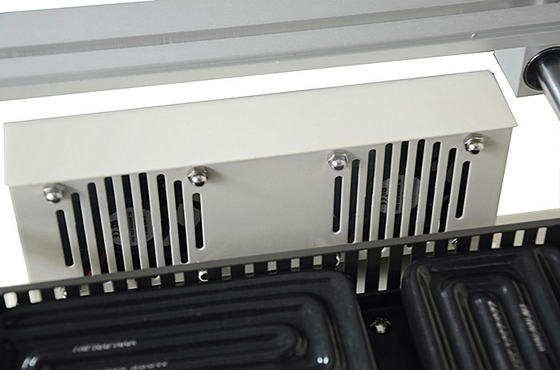

Detailed Images

Packing&Shipping

1, Standard Export Wooden cases
2, Delivery in 5 workdays after payment confirm;
3, Shipping by TNT,DHL,FEDEX , or by air or by sea
4, Loading port: Shenzhen or Hongkong.

Company Introduction

Shenzhen Wisdomshow Technology Co., LTD.
Professional BGA Rework Station Manufacturer

1. Following the business philosophy of "professional, integrity, excellence, customer first";
2. One of the leading manufacturers of BGA rework stations;
3. Over 10 years' experience in the BGA rework industry;
4. All models have passed the CE Certificate and ISO;
5. 100% QC inspection before shipment;
6. Customized brand logo is acceptable;
7. Owning a large market share in the world;

Our Services & Advantages

Contact:24 hours technical support by email or calling;
Warranty:one year free,but all the other relative cost should be on the buyer's account;
Technology Support : Provide Demo operation video for training ;If you have time,welcome to our company,we will arrange engineers to show you the operation;
Service:Friendly English User manual provided; Good and professional after-sales service;
Price:Give great discount to AGENCY to ensure agents profit.

Buyer Feedback

Our Customers' Voice:
1.Hi mate, your best price and high purity product is so competitive in my country , this let me make much profit , my customers are really like it . cooperate with you is so wonderful ! thank you ! ---------Richard---Turkey

2.i have received my products , your packing is do discreet and perfect , it really amazed me .i will order more from you as soon as possible. thanks a lot. -----------Robet--Australia

3.i have cooperated with you for many times , your product quality is so great , that is why i still buy the products from you
.thank you . ------------- Corentin ---Brazil

Order Now

If any questions please send INQUIRY or CHAT with us ,
We will be glad to service you !
Now you can order freely!!!
Plz Contact me as below guide, we are glad to give you the best price!
