Product Details:
|
| Condition: | New | Machine Type: | Bga Machine |
|---|---|---|---|
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Retail | Showroom Location: | None |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Hot Product 2019 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Bearing, Optical Prism | Warranty: | 1 Year |
| Key Selling Points: | Multifunctional | Weight (KG): | 90KG |
| Voltage: | 110V/220V | Current: | Dependable |
| Rated Capacity: | 5300W | Rated Duty Cycle: | N/A |
| Dimensions: | L650*W630*H850mm | Usage: | Chips Repair Bga Station |
| Product Name: | Bga Ic Chip Repair | Total Power: | 5300W Chip Level Repair |
| Upper Heating Power: | 1200W Laser Welding Machine Price | Lower Heating Power: | Second Zone:1200W, Third Zone: IR 2700W |
| PCB Size: | 400*390mm, Min 10*10mm | BGA Chip Size: | 80*80mm,Min 1*1mm |
| Locating Mode: | V-shape Card Slot, PCB Holder Can Be Adjustable By X And Y Axes | Color: | White Or Blue |
| Electrical Material: | High Sensitive Temperature Control Module, Touch Screen (Taiwan) | Training: | Free Training Of The Operation Via Webcam Or In Factory |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | None |
| After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support | ||
| High Light: | BGA Reballing Equipment Machine,eballing Equipment Machine IC Chip,IC Chip Reballing Machine |
||
Laptop / Notebook / Computer motherboard repair .
Playsttion / XBOX / X360 / Xbox one game console repair.
Iphone 4/ 4s / 5 /5s motherboard repair.
SMD / SMT / IC BGA rework
BGA VGA CPU GPU soldering desoldeing machine .
QPN QFN PLCC PC PSP PSY rework
|
|

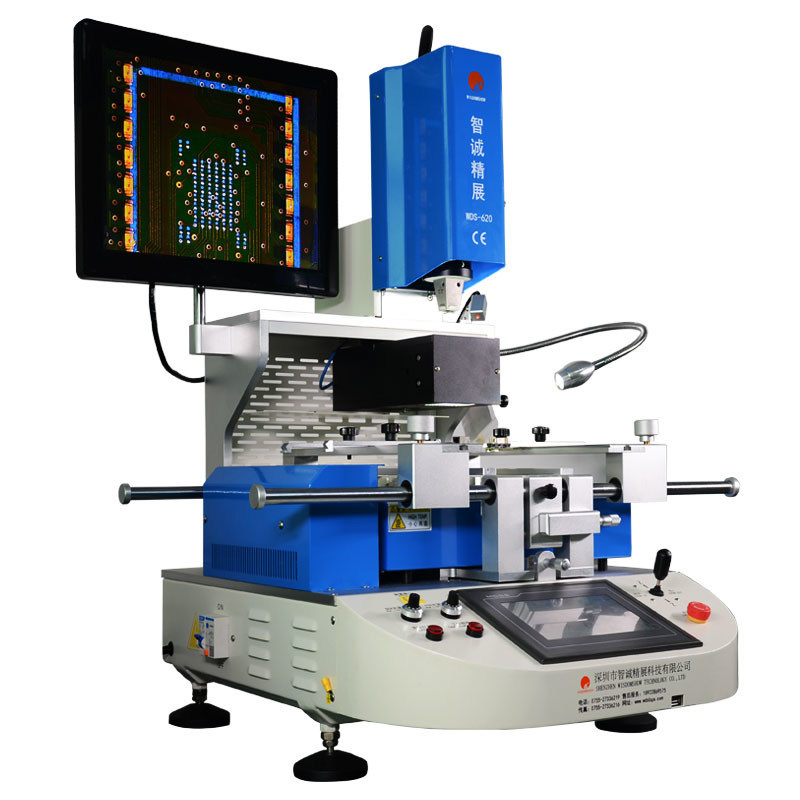

Original Factory WDS-620 BGA Rework Station
|
|
|
||
|
Brand Name
|
Wisdomshow BGA Rework Station
|
|
|
||
|
Mode Number
|
WDS-620 bga rework station
|
|
|
||
|
Power Supplier
|
AC 220V±10% 50/60Hz
|
|
|
||
|
PCB Size
|
Max:370*380mm Min:10*10mm
|
|
|
||
|
Applicable Chip Size
|
Max: 80*80mm Min 1x1mm
|
|
|
||
|
Temperature Controlling
|
K-type thermocouple close-loop control,independent temp.controller, the precision can reach ±1℃
|
|
|
||
Independent 3 heating zones temperature control system

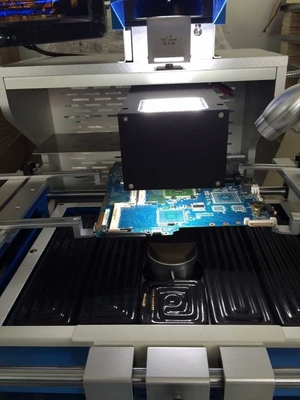

1.The upper and lower hot air heating,which can heat up at the same time from the top of the component to the bottom of the PCB;bottom IR heating,temperature precision control within ±1℃.8 segment temperature control independently.
3.Adopted high precision K-type thermocouple close-loop control and PID parameter self-setting system;
4.temperature curves can be displayed with instant curve analysis function and multi-group user data can be saved;temperature can be tested precisely through external measurement interface,curves can be analysed,set and correct on the touch screen at any time.
Using high definition and adjustable CCD color optical alignment system,beam split, amplification , lessening,fine adjustment and auto focus with the function that automatic color aberration resolution and brightness adjustment,adjustable image contrast;equipped with 15 " high definition LCD monitor
1.Adopting the HD touch human-machine interface;upper heating head and mounting head designed 2 in 1;providing many kinds of titanium alloy BGA tuyere can be rotated in 360 degree for easy installation and replacement.

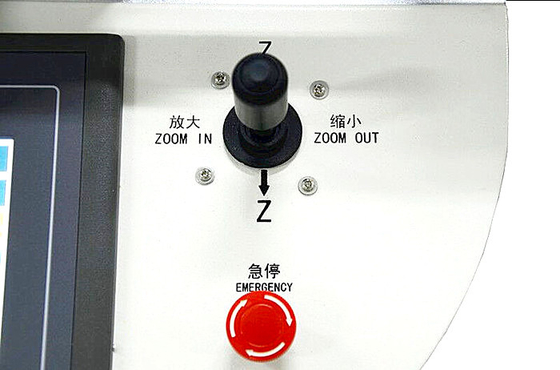

2.X,Y and R angle adopted micrometer fine-tuning,accuracy locating,precision can reach ±0.01mm.
|
Packaging
|
|
|
|
Size
|
81cm (L) * 68cm (W) * 89cm (D)
|
|
|
Weight
|
85kg
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
* All productiong lines have adequate quality control and QA/QC inspectors work independently from the production line, All products passed CE & ISO certification..
* Offer free spare parts and service within one year of warranty,but all the other relative cost should be on the buyer's account
* Provide Demo operation video for training ;If you have time,welcome to our company,will arrange engineers to show you the operation
