Product Details:
|
| Condition: | New | Machine Type: | Bga Repair Machine |
|---|---|---|---|
| Applicable Industries: | Machinery Repair Shops | Showroom Location: | None |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC | Warranty: | 1 Year, One Year,lifetime Maintainence |
| Key Selling Points: | Accurate Temperature Control | Weight (KG): | 90 |
| Voltage: | 110V/220V | Current: | Dependable |
| Rated Capacity: | 5300W | Rated Duty Cycle: | N/A |
| Dimensions: | L650*W630*H850mm | Usage: | Bga Repair Machine |
| Total Power: | 5300W | Upper Heating Power: | 1200W Automatic Bga Rework Station |
| Lower Heating Power: | Second Zone:1200W, Third Zone: IR 2700W | PCB Size: | Max 400*390mm, Min 10*10mm |
| BGA Chip Size: | Max 80*80mm,Min 1*1mm | Positioning Way: | V-groove + Universal Fixture |
| Color: | Blue | Electrical Material: | High Sensitive Temperature Control Module, Touch Screen (Taiwan) |
| Training: | Free Training Of The Operation | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | None | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support |
| Port: | Shenzhen HK | ||
| High Light: | PS TV LCD BGA Welding Machine,BGA Welding Machine 5300W,5300W 220V motherboard repair machine |
||

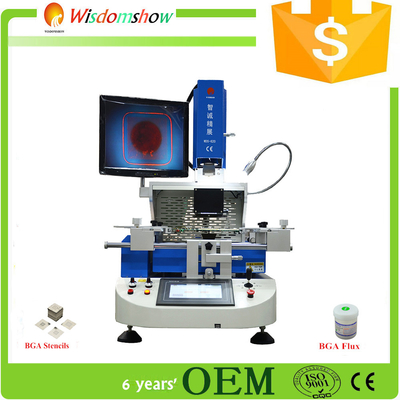

Welcome to wds-620 products window,have a good time.
Our concept :After-sales services are available,your satisfication is our greatest pursue!!
*How to useWDS-620 automatic bga rework station ?
https://www.youtube.com/watch?v=yrjEXOSy0c4
1. Smart phone /iPhone/iPad repair;
2. Notebook/ Laptop /Computer/Macbook /PC repair;
3. XBOX 360/PS2/ PS3/PS4 Wii and so on video game consoles repair;
4. Othe LED/SMD/SMT/IC BGA rework;
5. BGA VGA CPU GPU soldering desoldering;
6.BGA chips,QFP QFN chip,PC,PLCC PSP PSY rework.
What's the Technology parameters?
|
1 |
Power supply |
AC 220V±10% 50/60Hz |
|
2 |
Total power |
Max 5300W |
|
3 |
Heater power |
Upper temp.zone 1200W,second temp.zone 1200W,IR temp.zone 2700W |
|
4 |
Electrical material |
Driving motor+ smart temp.controller+color touch screen |
|
5 |
Temperature controlling |
(high precision K-sensor)(Closed Loop), independent temp.controller,the precision can reach ±1℃ |
|
6 |
Locating way |
V shape slot,PCB support jigs can adjust,laser light do fast centering and position |
|
7 |
PCB size |
Max 400×390mm Min 10×10 mm |
|
8 |
Applicable chips |
Max 80×80mm Min 1×1 mm |
|
9 |
Overall dimension |
L650×W630×H850mm |
|
10 |
Temperature Interface |
1 pcs |
|
11 |
Weight of machine |
60KG |
|
12 |
Color |
White updated to blue with new system |
What's the WDS-620 Main specification?
*Independent 3 heating zones temperature control system
1.The upper and lower hot air heating,which can heat up at the same time from the top of the
component to the bottom of the PCB;bottom IR heating,temperature precision control within ±1℃.
8 segment temperature control independently. automatic bga rework station
2.Hot air district heating for BGA and PCB at the same time,and large area IR heater preheating up
for the bottom of PCB to avoid completely PCB deformation during reworking,the upper or lower
temperature zones could be used alone and combine freely the energy of up and lower
heating element. BGA chips reballing machine price
3.Adopted high precision K-type thermocouple close-loop control and PID parameter self-setting
system; BGA chips reballing machine price
4.temperature curves can be displayed with instant curve analysis function and multi-group
user data can be saved;temperature can be tested precisely through external measurement
interface,curves can be analysed,set and correct on the touch screen at any time.
*Precision optical alignment system
Using high definition and adjustable CCD color optical alignment system,beam split,amplification,lessening,fine adjustment and auto focus with the function that automatic color aberration resolution
and brightness adjustment,adjustable image contrast;equipped with 15 ” high definition
LCD monitor.
*Multi-functional and humanized operation system
1.Adopting the HD touch human-machine interface;upper heating head and mounting head designed 2 in 1;providing many kinds of titanium alloy BGA tuyere can be rotated in 360 degree for easy installation and replacement. welding pcb motherboard machine
2.X,Y and R angle adopted micrometer fine-tuning,accuracy locating,precision can reach ±0.01mm.
*Superior safety protection function
With the alarm function, after the BGA welding the machine can alarm by itself.In the case of temperature abuse, the circuit can power off automatically with the double over-temperature protection.
Temperature parameter having password protection to prevent any modification. welding pcb motherboard machine

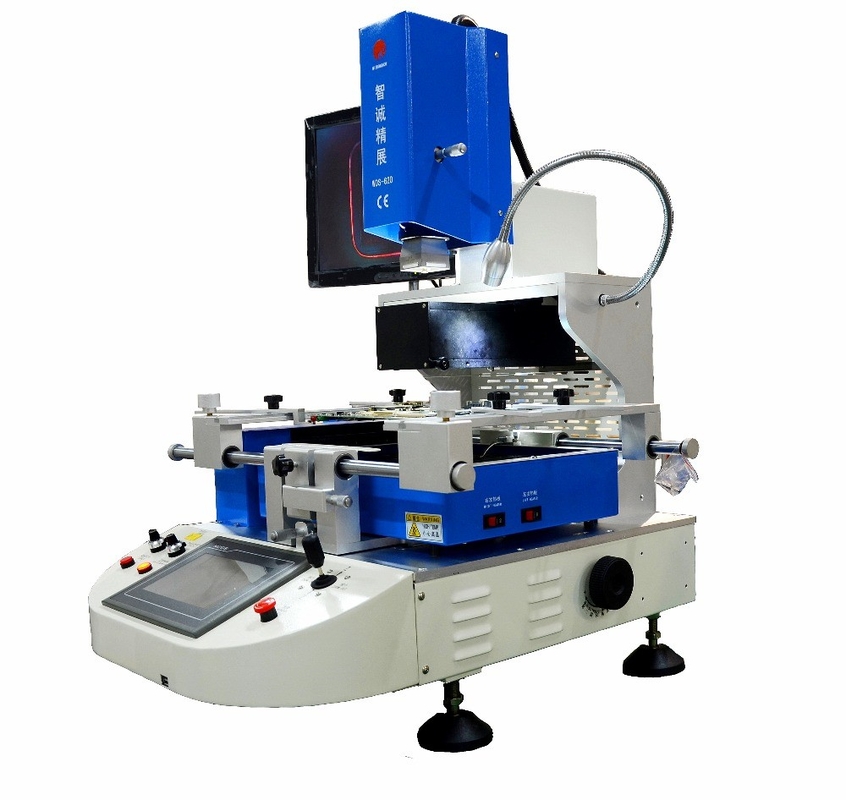

More detailed picture of WDS-620 BGA Rework Machine:
1.High Resolution CCD Camera with optical lens

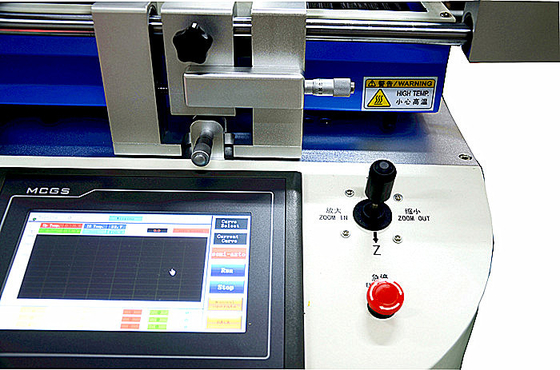

2.High Sensitive Touch Screen
3.Strong Plate + Flexible universal jigs(6pcs)

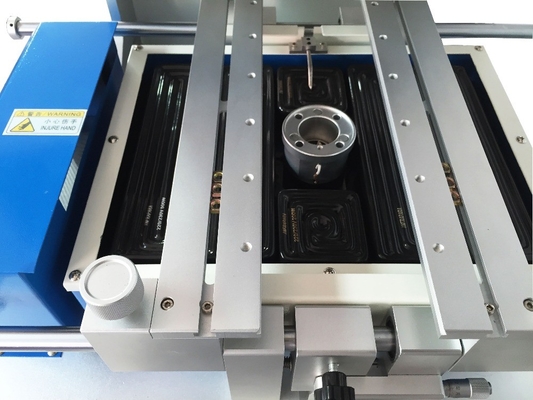

4.Large IR Heating Zone (2700W)
5.Micrometer Angle Adjust(Micro adjust to
alignment)

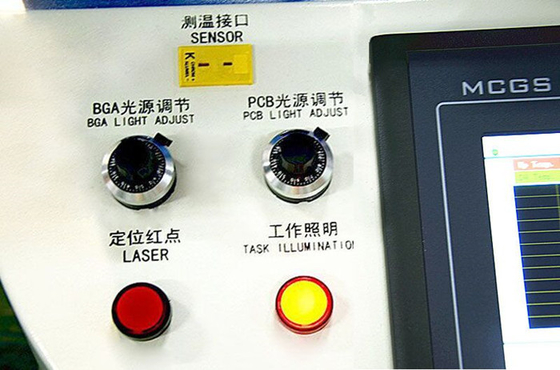

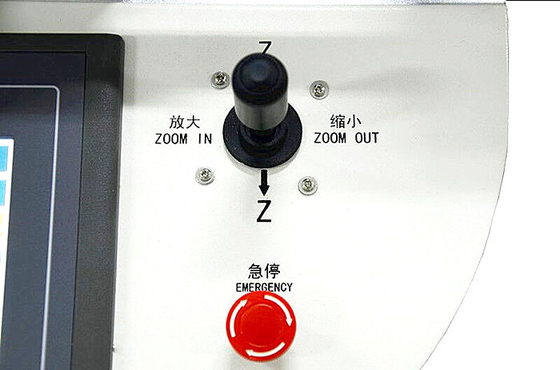

6.Perfect design + Multi-functional button
(Joystick,Laser position,K-sensor,PCB,BGA Light Adjust)
7.Second Heating Zone Height Adjust Button
How about the package & shipping?
1,Standard export wooden package for bga rework station:83*70*87cm,105KG
2,Delivery in 2 workdays after payment confirm;
3,Shipping by TNT, UPS ,DHL,FEDEX (IE), Aramex or by air or by sea
4,Loading Port: Shenzhen or Hongkong
Why Choose WDS?
1. We are the Manufacturer,provide you the best quality & services & price;
2. 100% NEW from WDS factory;
3. Over 20 R&D engineers, with 10 year experience;
4. Over 10,0000 Global User;
5. All models approved CE ISO9001;
6. 100% QC inspect before shipment;
7. High quality & competitive price.
What’s our service for u?
1.Your inquiry will be replied in 24 hours ;
2.Offer free spare parts and service within one year of warranty,but all the other relative cost should be on the buyer's account;
3.Technology Support :Provide Demo operation video for training ;If you have time,welcome to our company,will arrange engineers to show you the operation;
4.Good and professional after-sales service;
5.Give great discount to AGENCY to ensure agents profit.
FAQ:
1. How many days can we get the machines ? How many delivery ways can we chose?
The specific time according different shipping ways you chose.
By DHL,Fedex, UPS,etc (Door to Door Service), about 3-7 days to arrive
By Air to your airport (Door to Airport Service ), about 3-5 days to arrive.
By Sea to the seaport, about 30 days to arrive.
2. How about the package ? Is it safe during the delivery ?
All BGA rework machine is packed by standard strong wooden box with foam inside.
It can guarantee the safety of shipping.
3. Can you provide the Warranty ? How about the after sales service ?
We have professional after sales team,supply 1 year warranty free for spare parts and whole life technical support. if any question,contact us in any time.
4. This machine is easy to operate? Do you provide the user manual to help me ?
Yes, we will provide the English user manual and can change the language as your requirement.The machine is humanized designed, do not worry,it is easy to operate.
5. What is the payment way ?
We accept the payment terms: Bank transfer, Wester Union, Moneygram, Paypal, Alibaba Pay,Aliexpress Pay,Credit Card etc.
