Product Details:
|
| Condition: | New | Machine Type: | Bga Repair Machine |
|---|---|---|---|
| Applicable Industries: | Machinery Repair Shops | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC |
| Warranty: | 1 Year | Key Selling Points: | Accurate Temperature Control |
| Weight (KG): | 70 | Voltage: | 220V/110v, 110V-220V |
| Current: | Dependable, Dependable | Rated Capacity: | 5100W |
| Rated Duty Cycle: | 100% | Dimensions: | L650*W630*H850mm, L650*W630*H850mm |
| Usage: | Repair CHIP FROM THE MOTHERBOARD, Wii Motherboard Rework Station | Type: | Laser Soldering Station |
| Total Power: | 4800W | Certificate: | ISO CE |
| Business Type: | Manufacturer With 10 Years' Domestic Experience | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | None | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support |
| Port: | SHENZHEN HK | ||
| High Light: | SMD BGA Welding Machine,BGA Welding Machine MCGS,MCGS Laser SMD Rework Station |
||

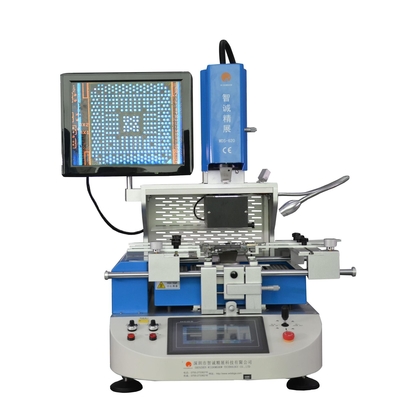

SMD Rework Station WDS-620 Laser Soldering Station MCGS Touch Screen Bga Soldering Station
ATT: Ivy
whatsapp+8613825209905
The Features of WDS-620 bga rework station :
1. HD Optical alignment system for precisely mounting BGA and components
2. Touch screen and PLC controlling to ensure it work stably and reliably.
3. Components mounting accuracy within 0.01mm , Repair success rate 99.9%
4. Laser Positioning function for fast positioning the BGA Chip and motherboard
5. Precise Temperature Control, accuracy within 2℃
6. Upper temperature zone can be moved freely, Second zone can be adjusted up and down.
7. Three temperature zones to heat up independently.
8. Hot air nozzle can be rotated in 360 degree
9. Perfect support Soldering, Desoldering, Removing and Reballing the BGA Chip
10. Rework BGA, VGA, CCGA, QFN, CSP, LGA, SMD, etc
11. With CE certification, double over temperature protection function
The Parameter of bga rework station :
| Place of Origin |
Guang dong , China |
| Brand Name | WDS |
|
Moed Number |
WDS-620 bga rework station |
| Superior function | Desoldering and soldering bga chip |
| Power | AC 220V±10% 50/60Hz |
|
Total Power
|
5300W |
|
Heater power
|
upper temp.zone 800w, second temp.zone 1200w, IR teom.zone 2700w |
| Temperature Controlling | K-type thermocouple close-loop control,independent temp.controller, the precision can reach ±1℃ |
|
PCB size
|
Max:370*380mm Min:10*10mm |
|
Applicable chips
|
Max: 80*80mm Min 1x1mm |
| Thermocouple Ports | 1 units |
WDS-620 BGA Rework Station Detailed SHOW
Independent 3 heating zones temperature control system
1. The upper and lower hot air heating,which can heat up at the same time from the top of the
component to the bottom of the PCB;bottom IR heating,temperature precision control within ±1℃.
8 segment temperature control independently. laser soldering station

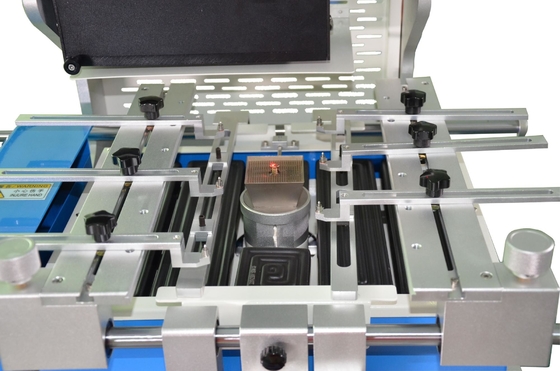

2. Hot air district heating for BGA and PCB at the same time,and large area IR heater preheating up
for the bottom of PCB to avoid completely PCB deformation during reworking,the upper or lower
temperature zones could be used alone and combine freely the energy of up and lower
heating element. bga welding machine
3. Adopted high precision K-type thermocouple close-loop control and PID parameter self-setting
system; bga welding machine
4. temperature curves can be displayed with instant curve analysis function and multi-group
user data can be saved;temperature can be tested precisely through external measurement
interface,curves can be analysed,set and correct on the touch screen at any time.

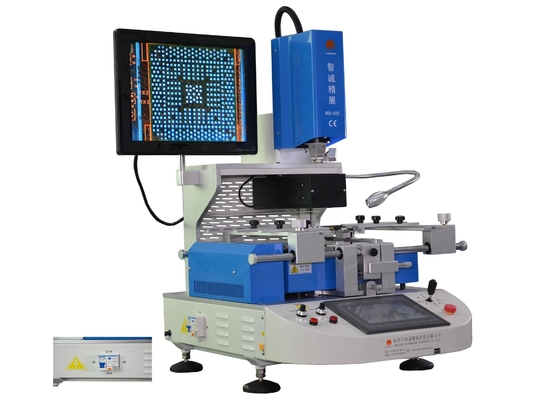

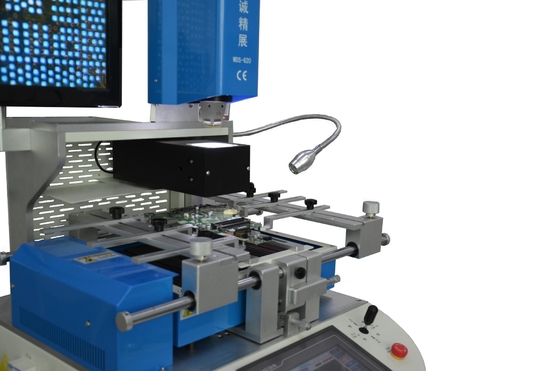

Precision optical alignment system
Using high definition and adjustable CCD color optical alignment system,beam split,amplification,lessening,fine adjustment and auto focus with the function that automatic color aberration resolution
and brightness adjustment,adjustable image contrast;equipped with 15 ” high definition
LCD monitor.
Multi-functional and humanized operation system

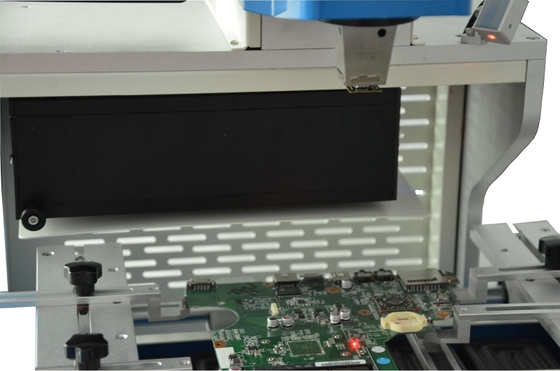

1. Adopting the HD touch human-machine interface;upper heating head and mounting head designed 2 in 1;providing many kinds of titanium alloy BGA tuyere can be rotated in 360 degree for easy installation and replacement.
2. X,Y and R angle adopted micrometer fine-tuning,accuracy locating,precision can reach ±0.01mm.
Superior safety protection function
With the alarm function, after the BGA welding the machine can alarm by itself.In the case of temperature abuse, the circuit can power off automatically with the double over-temperature protection.
Temperature parameter having password protection to prevent any modification. bga welding machine.
WDS-620 bga rework station package & shipping?
1, Standard export wooden package for bga rework station:83*70*87cm,105KG
2, Delivery in 2 workdays after payment confirm;
3, Shipping by TNT, UPS ,DHL,FEDEX (IE), Aramex or by air or by sea
4, Loading Port: Shenzhen or Hongkong
1. Your inquiry will be replied in 24 hours ;
2. Offer free spare parts and service within one year of warranty,but all the other relative cost should be on the buyer's account;
3. Technology Support :Provide Demo operation video for training ;If you have time,welcometo our company,will arrange engineers to show you the operation;
4. Good and professional after-sales service;
5. Give great discount to AGENCY to ensure agents profit.
Welcome to visit our factory !
If any question please send INQUIRY or CHAT with us ,
we will pleasure to service you !
