Product Details:
|
| X-Ray Source Tube: | HAMAMATSU | Tube Voltage:: | 40-130kV (Adjustable) |
|---|---|---|---|
| Tube Type: | Sealed | Focus Spot Size: | 3μm |
| Detector: | Flat Panel Detector (FPD) | Packing Weight: | 1950 Kg |
| Power Supply: | AC 110~220V, 50/60Hz | Radiation Safety Standard: | < 1uSv/hr.（International Standard） |
| High Light: | Analysing Inline Semiconductor Inspection Equipment,Semiconductor Inspection Equipment FPC,QFN Automated x ray inspection |
||

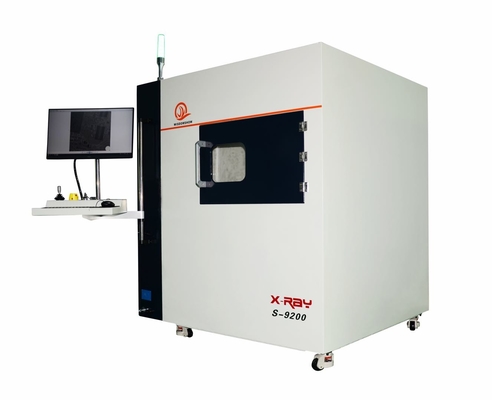

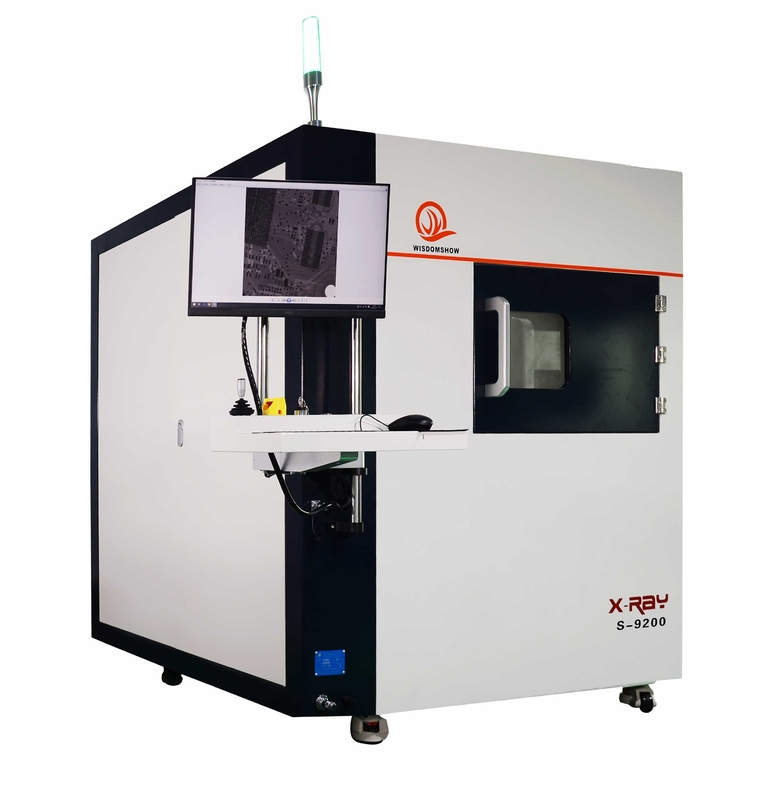

Analysing Inline SPC Electronics X Ray Machine S9200 FPC For BGA QFN Soldering
| Item | S-9200 | |
| Panel Detector | Pixel Pitch | 49.5um |
| Inspection area | 600mmx600mm | |
| Detector Tile Angle | 70 Degree | |
|
X-Ray Source Tube |
Optical Tube Style | Closed tube |
| Optical Tube voltage | 130KV | |
| Optical Tube current | 250UA | |
| Optical Tube focus size | 5um | |
| Optical Tube Power | 40W | |
| System Magnification | 1200X | |
| Geometric Magnification | 125X | |
| Sample Table | Diameter | Φ520mm |
| R axis (horizontal rotation) | 360° | |
| Tube axis moving up and down | 380mm | |
| Detector moving up and down | 380mm | |
| Platform Deadweight | 10KG | |
| Software Function | Size Detection | Point to point&Line to line angle measure |
| Bubble Detection | casting solder joint bubble can be measured and inspected for cracks | |
| Power | Power supply | AC110-230VAC, 50/60Hz |
|
Computer |
Brand | Dell |
| Operation System | Windows10 | |
| Display | 24”LCD | |
| CPU | Intel i5 6500 | |
| Radiation Safety Standard | < 1uSv/hr(International standard) | Radiation leakage dose＜1µSv/h(GB15208.1～2005) |
|
X-Ray Dimensions |
Dimension | 1500mmX1300mmX1800mm |
| Weight | 1500KG | |
|
Warranty
|
Tow years | Two years warranty |
1. SMT, BGA, CSP, Flip Chip, LED Detection.
2. Semiconductor, Packaging components, Battery Industry.
3. Electronic components, Auto parts, Photovoltaic Industry.
4. Aluminum Die-casting, Moulding Plastic.
5. Ceramics, Other Special Industries.
Standard configuration
| Items | Number | Unit | Specification |
| Closed X-ray tube | 1 | piece | 130KV |
| Sample Table | 1 | piece | 900mm*700mm |
| Inspection Area | 1 | piece | 900*700mm |
1. Adjust the speed of the stage through the space bar: slow, normal, fast
2. Keyboard control X, Y, Z1 Z2 the four-axis movement.
3. The user can control the speed of the stage by programming
Fully automatic BGA detection program
1.Simple mouse click to write program.
2.Automatic analysis on diameter, proportion of cavity, area and roundness of BGA.
3.Automatic BGA detection program has high repeatability of detection results for process control.
4.The test results will be displayed on the screen and can be output to excel for review.
CNC programming
1. Simply mouse click to write detection program.
2. Sample tablecan be positioned in X, Y direction; X-ray optical tube and detector can be positioned in Z direction.
3. Software set voltage and current.
4. Image settings: brightness, contrast, auto gain and exposure.
5. Users can set the pause time for program switching.
6. Anti-collision system can meet the maximum tilt and observation.
