Product Details:
|
| Product Name: | WDS-620 BGA Rework Station | Function: | Repair Motherboards |
|---|---|---|---|
| Power Supply: | AC 220V+-10% 50/60Hz | PCB Size: | Max 470*380mm, Min 10*10mm |
| Chip Size: | Max 70*70mm, Min 1*1mm | PCB Thickness: | 0.3-5mm |
| Mount Precision: | ±0.01mm | Temperature Interface: | 1 Pcs |
| High Light: | Laptop Motherboard Repair Machine,Mobile motherboard repair machine,Repair Motherboards BGA Rework Station |
||
Product Description
Our BGA Rework Station/ BGA reballing station are widely used to replace and repair the BGA chip in laptop, mobile phone,xbox360,ps3,etc.
The main user is repairing shops and factory to provide the after-sales service and rework.
Main Features

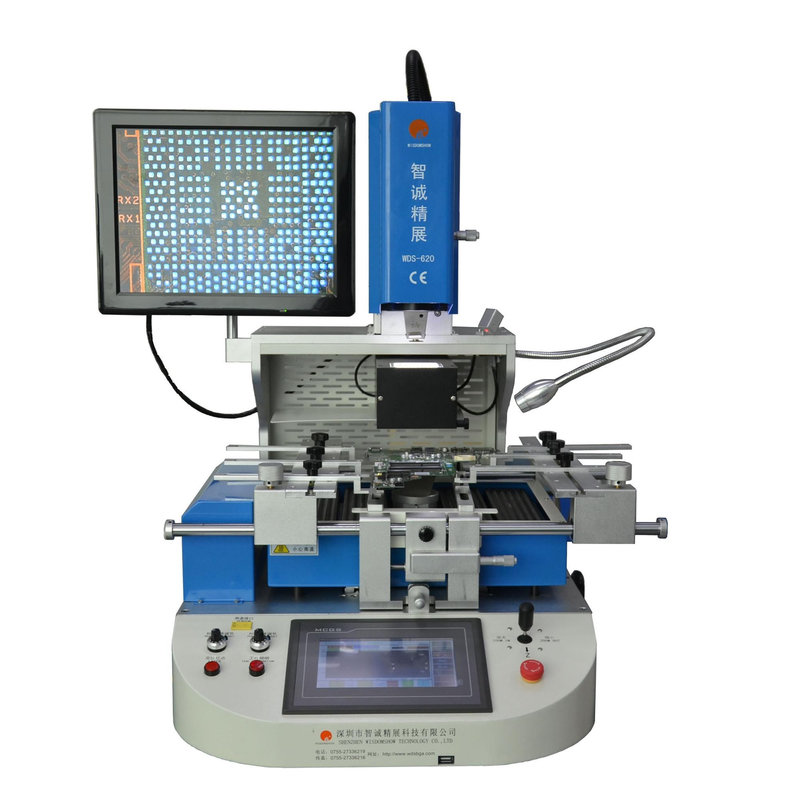

BGA Rework Station
Model:WDS-620
♦ Automatic&Manual operation system
♦ 5 million CCD camera optical alignment system mount precision ±0.01mm
♦ MCGS touch screen control
♦ Laser position
♦ Repair success rate 99.99%
| Power supply | AC 220V±10％ 50/60Hz |
| Total power | Max 5300W |
| Heater power | Upper temp.zone 1200W,second temp.zone 1200W,IR temp.zone 2700W |
| Electrical material | Driving motor+PLC smart temp.controller+HD camera |
| Temperature controlling | (high precision K-sensor)(Closed Loop),independent temp.controller,the precision can reach ±2℃ |
| Locating way | V shape slot,PCB support jigs can adjust,laser light do fast centering and position |
| PCB size | Max 410×380mm Min10×10mm |
| Applicable chips | Max 70×70mm Min1×1mm |
| Overall dimension | L650×W630×H850mm |
| Temperature Interface | 1 pcs |
| Weight of machine | 60KG |
| Color | White&blue |
| Work mode | 5 modes for choose,auto/manual work mode can be changed freely |
Packing&Shipping
1, Standard Export Wooden cases
2, Delivery in 2 workdays after payment confirm;
3, Shipping by TNT,DHL,FEDEX , or by air or by sea
4, Loading port: Shenzhen or Hongkong.
Our Services & Advantages
1. 24 hours technical support by email or calling;
2. Warranty:one year free,but all the other relative cost should be on the buyer's account;
3. Technology Support : Provide Demo operation video for training ;If you have time,welcome to our company,we will arrange engineers to show you the operation.
