Product Details:
|
| Condition: | New | Machine Type: | Bga Repair Amchine |
|---|---|---|---|
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Retail | Showroom Location: | None |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Lastest Model | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Bearing, Optical Prism | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Weight (KG): | 145KG |
| Voltage: | 110V/220V, 110V/220V | Current: | Dependable, Dependable |
| Rated Capacity: | 4200W | Rated Duty Cycle: | 100% |
| Dimensions: | L980*W800*H870mm | Usage: | Bga Repair Amchine |
| Type: | Machines To Remove Icloud From Iphone | Precision: | ±1℃ |
| Certificate: | ISO CE | Business Type: | Manufacturer With 15 Years' Domestic Experience |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | None |
| After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support | Port: | SHENZHEN |
| High Light: | IC Chip Mounting Laptop BGA Machine,Laptop BGA Machine CE ISO,CE ISO Automatic reballing machine |
||
Our BGA Rework Station/ BGA reballing station are widely used to replace and repair the BGA chip in laptop, mobile phone, xbox360,ps3,etc. The main user is repairing shops and factory to provide the after-sales service and rework.
Repair steps:
1) Separate the BGA chip from mother board –we called desoldering
2) Clean Pad
3) Reballing or replace a new BGA chip directly
4) Alignment/Positioning – Depend on experience ,silk frame ,optical camera
5) replace a new BGA chip - we called Soldering
BGA rework station could be used in :
1. Watch / Mobile /Cell phone repair; soldering station desoldering station
|

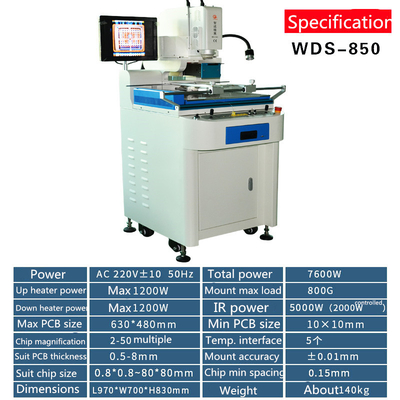

WDS-850 bga machine parameter
|
|
|
|
|||
|
Original place |
Brand Name
|
Wisdomshow chips reballing machine
|
|
|||
|
|
Mode Number
|
WDS-850 bga rework station
|
|
|||
|
|
Superior function
|
Soldering and desoldering bga chip
|
|
|||
|
Parameter of WDS-850 smartphone repair machine |
Power
|
AC 110/220V±10% 50/60Hz
|
|
|||
|
|
Total Power
|
7600W
|
|
|||
|
|
Heater power
|
upper temp.zone 1200w, second temp.zone 1200w, IR zone 5000w
|
|
|||
|
|
Temperature Controlling
|
K-type thermocouple close-loop control,independent temp.controller, the precision can reach ±1℃
|
|
|||
|
|
PCB size
|
Max 630*480mm Min 5*5mm
|
|
|||
|
|
Applicable chips
|
Max: 80*80mm Min 0.8x0.8mm
|
|
|||
Main Features

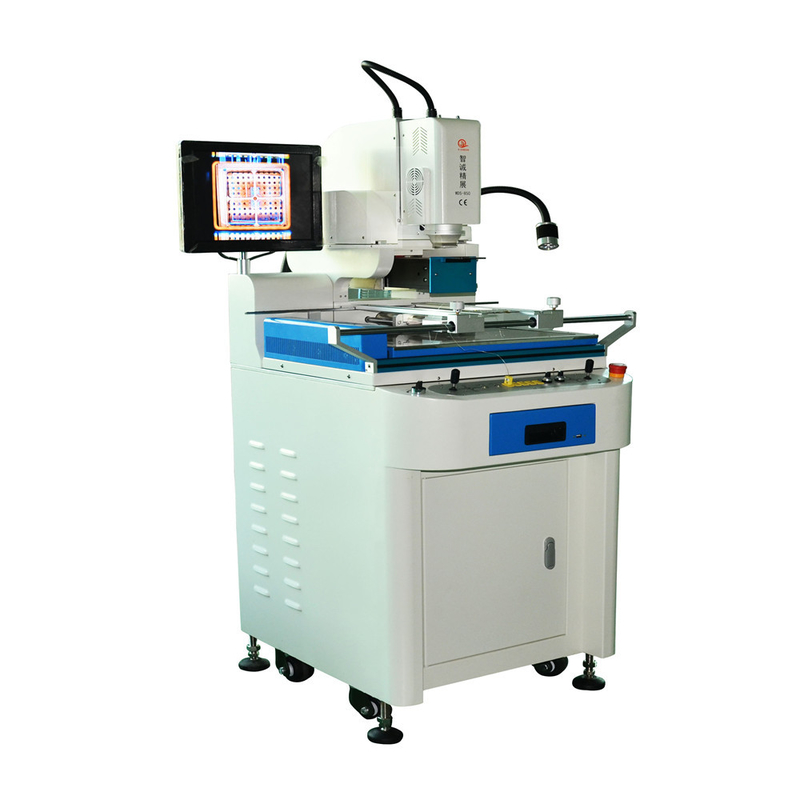

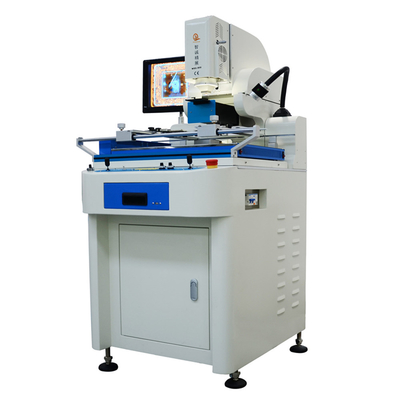

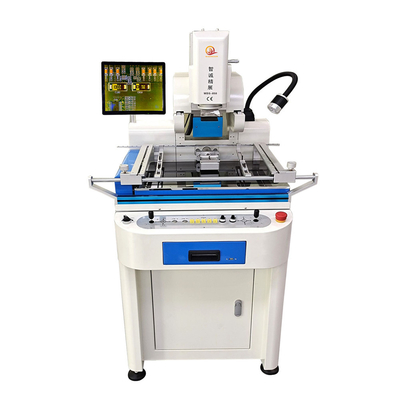

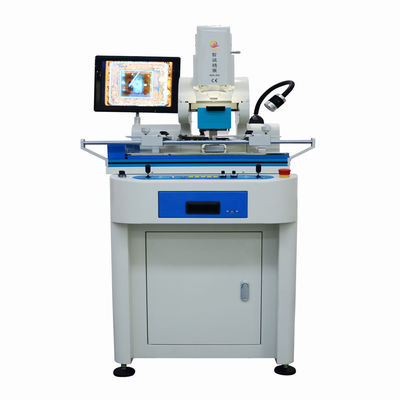

1.Hot air head and mounting head integration design, with auto soldering and desoldering functions.
2.Independent 3 heaters, upper and lower heaters can realize move synchronously and automatically,can reach IR every position.Lower heater zone can remove up and down,support PCB board. bottom preheating area along X/Y axis. Lower heater can move up/down and support PCB,auto-controlled by motors. It can realize the upper and lower heater able to move towards target BGA, without moving PCB.
3.PCB board adopts high accuracy slider to make sure the mount precision of BGA and PCB.
4.Unique bottom preheating table made of Germany-imported good quality heating materials plated IR tube & constant temperature glass anti-dazzle (heat-resist up to 1800 C), pre-heating area up to 500*420mm.
5.Preheating table, clamping device and cooling system can move integrally in X axis that make PCB locating & desoldering safer and conveniently.
6.X and Y axis adopt motor automatic control moving way to make the alignment faster and more convenient,make the most use of the equipment space,realization of repairing large area PCB with a smaller volume of equipment.The Max plate size can reach 650*610mm,no repair dead corner.
7.Double rocker control the camera and upper and lower heating platform to make sure
the alignment precision accuracy.
8.Inbuilt vacuum pump, rotate 360 in angel; fine-adjusting mounting suction nozzle.
9.Suction nozzle can detect BGA pickup and mounting height automatically with pressure controllable within 10 grams; zero pressure available to smaller BGA pickup and mounting.
Up-heater power: 1200W
Down-heater power: 1200W
IR power : 5000W

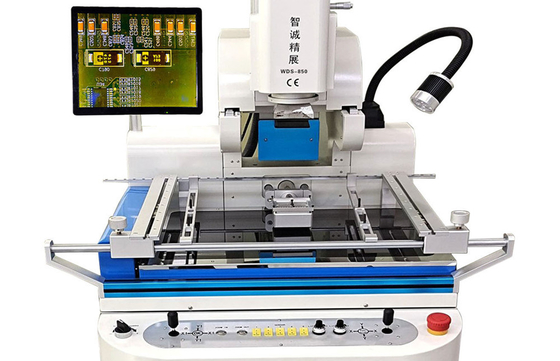

Using high definition + CCD color optical alignment system+ high definition LCD monitor
HD touch human-machine interface +8 segments temperature controlling at the same time.
Display 4 temperature curves and instant curve analysis function
With passwork protection to prevent any modication.
Double over-temperature protection.
