Product Details:
|
| Condition: | New | Machine Type: | Bga Rework Station |
|---|---|---|---|
| Applicable Industries: | Machinery Repair Shops | Showroom Location: | None |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC | Warranty: | 1 Year |
| Key Selling Points: | Accurate Temperature Control | Weight (KG): | 70 |
| Voltage: | 110V/220V | Current: | N/A |
| Rated Capacity: | 4800W | Rated Duty Cycle: | N/A |
| Dimensions: | L650*W630*H850mm | Usage: | Motherboard Repair Machine |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support | Product Name: | Graphic Cards Repair Bga Machine |
| Upper Heating Power: | 1200W Logic Board Iphone Repair | Bottom Heating Power: | 1200W + 2700W |
| PCB Size: | Max 400*390mm Min 10*10 Mm | Applicable Chips: | Max 80*80mm Min 1*1 Mm |
| Electrical Selection: | Driving Motor+ Smart Temp.controller+color Touch Screen | Type: | Bga Soldering/desoldering |
| After Warranty Service: | Video Technical Support, Spare Parts, Field Maintenance And Repair Service | Port: | FOB Shenzhen And FOB HongKong |
| High Light: | 4800W 60Hz Infrared BGA Rework Station,Infrared BGA Rework Station Soldering Desoldering,WDS-600 mobile phone motherboard repair machine |
||
Name: Semi-auto optical alignment system
Brand: Wisdomshow
Original: Shenzhen , China
Precision optical alignment system
Domestic famous BGA rework station, It has equipped with beam split,amplification,lessening,fine adjustment and auto focus with the function that automatic color aberration resolution and brightness adjustment,adjustable image contrast;equipped with 15 " high definition LCD monitor.Name: Multi-functional and humanized operation system
Domestic famous BGA rework station, Adopting the HD touch human-machine interface;upper heating head and mounting head designed 2 in 1;providing many kinds of titanium alloy BGA tuyere can be rotated in 360 degree for easy installation and replacement.

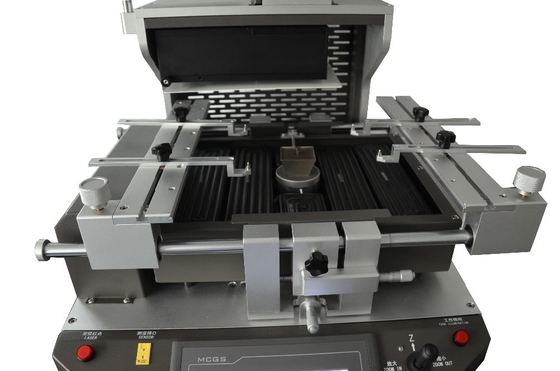

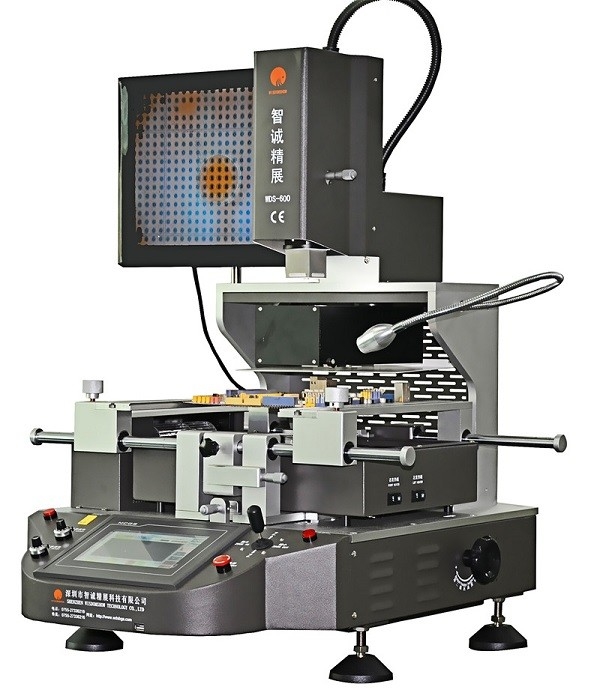

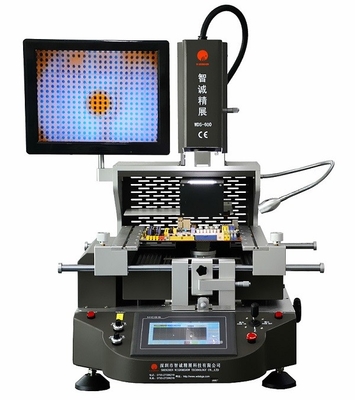

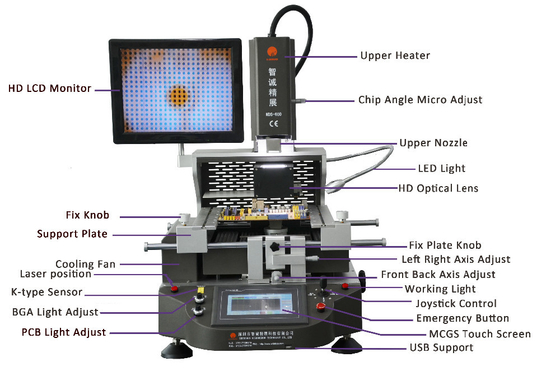

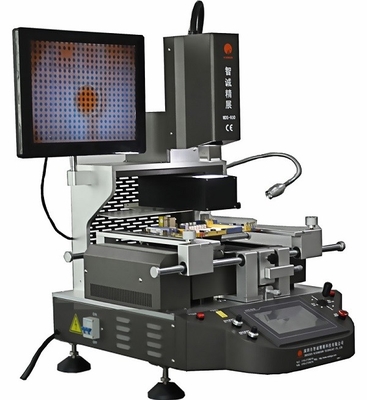

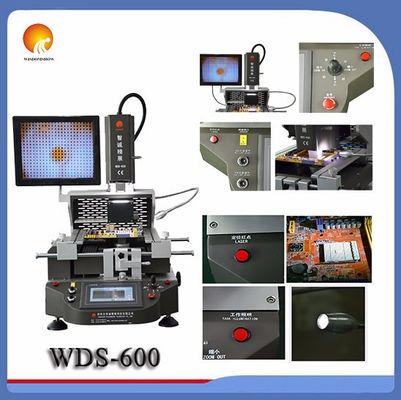

Name: WDS-600 bga rework station
Brand: Wisdomshow
The upper and lower hot air heating,which can heat up at the same time from the top of he component to the bottom of the PCB;bottom IR heating,temperature precision control within ±1℃.8 segment temperature control independently.
Shenzhen Wisdomshow Technology Co.Ltd.Founded in 2011,is the professional manufacturer of BGA rework station,which precedes multi-aspect managements including innovating,producing,selling and trade services.It consists of technologe backbone and sales elite which have over 10 years' experience and rise rapidly with the professional and mature technology in BGA rework station field.
The CE certificate is passed,and all products have independence intellectual property and patents.
We are devoted to the pratice of the motto"Specialized,Innovative and dedicated" and obtain the customer's satisfaction and approval.We sincerely look forward to working with you! WDS-600 bga rework station
We accept the payment terms: T/T, WesterUnion, Moneygram, Paypal, etc..
