Product Details:
|
| Condition: | New | Machine Type: | Bga Rework Station |
|---|---|---|---|
| Applicable Industries: | Machinery Repair Shops | Showroom Location: | None |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC | Warranty: | 1 Year, 1 Year,lifetime Maintainence |
| Key Selling Points: | Accurate Temperature Control | Weight (KG): | 70 |
| Voltage: | 110V/220V | Current: | Dependable |
| Rated Capacity: | 4200W | Rated Duty Cycle: | 100% |
| Dimensions: | L450*W480*H670mm | Usage: | Mobile Ic Reballing Station |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Free Spare Parts, Field Installation, Commissioning And Training, Video Technical Support, Online Support | Total Power: | 4200W |
| Upper Heating Power: | 1200W | Lower Heating Power: | 1200W , IR 1800W |
| PCB Size: | Max:140*160mm,Min 5*5mm | BGA Chip Size: | Max: 60*60mm, Min 1*1mm |
| Locating Mode: | V-shape Card Slot, PCB Holder Can Be Adjustable By X And Y Axes | Electrical Material: | High Sensitive Temperature Control Module, Touch Screen (Taiwan) |
| Training: | Free Training | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | None | Port: | Shenzhen HK |
| High Light: | CE ISO Infrared BGA Rework Station,WDS-720 Mobile Phone Bga Rework Station,WDS-720 bga rework station for mobile |
||

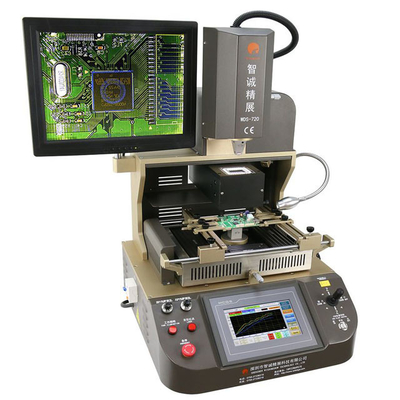

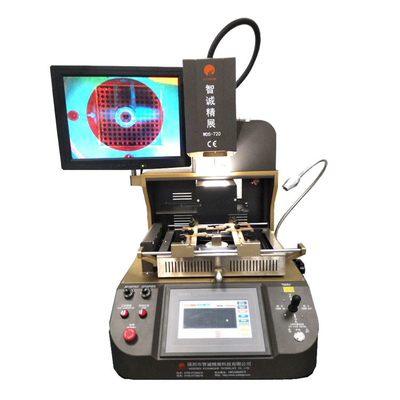

Free training wds 720 mobile phone bga rework station with optical alignment hd camera
easy operation , 100% succeess rate, Auto out & in
1). Auto soldering ,desoldering and mounting. 5 models
2). High resolution optical alignment system and HD camera system+3 axies micro adjust, accurate bga position.ensure precise mounting .
3).Many different sizes of nozzle, also can be customized .
4).3 temperature zones controlled . the upper and lower is hot air heating , the thired heater is laser position. Could working independent.
5). With a powerful cross-flow and 1 external temp sensor socket.
6).High sensitive touch screen, Panasonic PLC control.
7). Alarm function and double over-temperature protection.
8). CE.ISO9001 approved.
9). Optical Alignment camera Auto out & in switch
| Item | QTY |
| Total Power | 4200W |
| Upper heating Power | 1200W |
| Lower heating power | 1200W ,IR 1800W |
| Model Number | WDS-720 bga chip removal machine |
| Overall Dimension | L450*W480*H670mm |
| Applicable PCB | Max260*260mm Min 5*5mm |
| Applicable IC | Max 60*60 Min 1*1mm |
| Power Supply | AC220V/110V , 50/ 60Hz |
| Weight | 40kg |
| Electric material | Driving motor+PLC smart temp. controller+color touch screen |
| Locating Mode | V-shape card slot, PCB holder can be adjustatble X&Y axex with universal jigs |
|
Independent 3 heating zones temperature control system 8 segment temperature control independently. and multi-group user data can be saved;temperature can be tested precisely through external measurement interface,curves canbe analysed,set and correct on the touch screen at any time. |
|

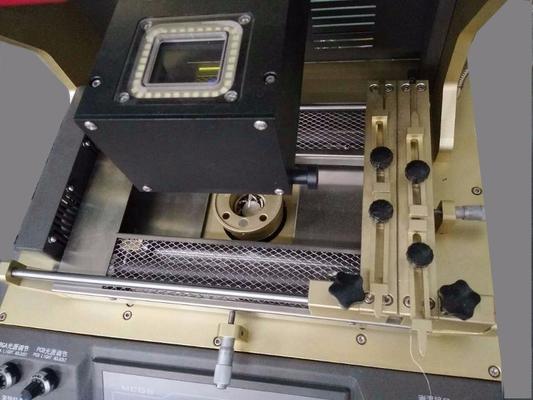

Precision optical alignment system 15 ” high definitionLCD monitor. wds 700 mobile phone bga rework station |
|
Multi-functional and humanized operation system 2.X,Y and R angle adopted micrometer fine-tuning,accuracy locating,precision can reach±0.01mm. |
| Superior safet protection function With the alarm function, after the BGA welding the machine can alarm by itself.In the case of temperature abuse, the circuit can power off automatically with the double over-temperature protection.Temperature parameter having password protection to prevent any modification. |

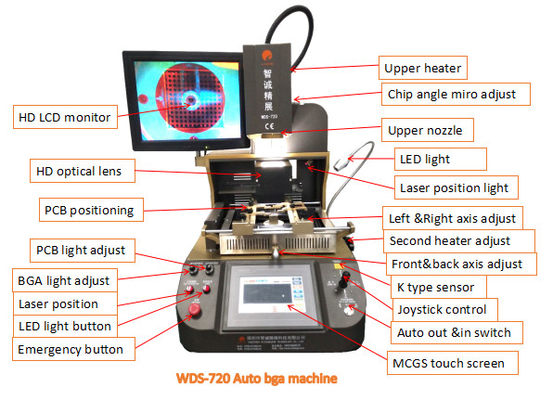

♦♦♦ Easy Operation Panel

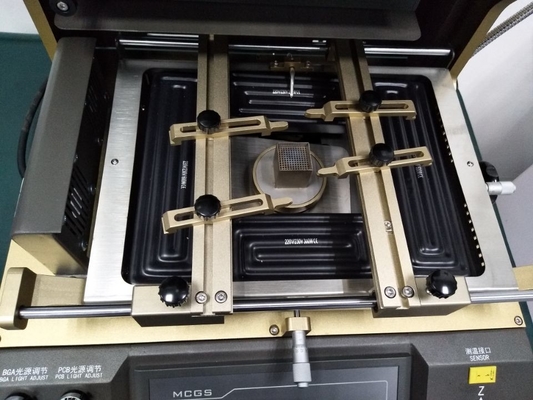

♦♦♦ Strong Universal Jigs + 360° Rotatable Nozzle
♦♦♦ High definition Camera
♦♦♦ High sensitive MCGS Touch Screen
♦♦♦ Auto Out & IN Optical alignment
Updated system
Newest WDS-720 is the updated system with 5 modes.It's Remove,Mount,Weld,Manual and Semi-auto.The mode can be changed freely.It can be used under automatic,semi-auto & manual mode. auto mobile repair tools
,Standard export wooden package for bga rework station.
2,Delivery in 2 workdays after payment confirm;
3,Shipping by TNT, UPS ,DHL,FEDEX (IE), Aramex or by air or by sea
4,Loading Port: Shenzhen or Hongkong
1. We are the Manufacturer,provide you the best quality & services & price;
2. 100% NEW from WDS factory;
3. Over 20 R&D engineers, with 10 year experience;
4. Over 10,0000 Global User;
5. All models approved CE ISO9001;
6. 100% QC inspect before shipment;
7. High quality & competitive price.
FAQ:
1. How many days can we get the machines ? How many delivery ways can we chose?
The specific time according different shipping ways you chose.
By DHL,Fedex, UPS,etc (Door to Door Service), about 3-7 days to arrive
By Air to your airport (Door to Airport Service ), about 3-5 days to arrive.
By Sea to the seaport, about 30 days to arrive.
2. How about the package ? Is it safe during the delivery ?
All BGA rework machine is packed by standard strong wooden box with foam inside.
It can guarantee the safety of shipping.
3. Can you provide the Warranty ? How about the after sales service ?
We have professional after sales team,supply 1 year warranty free for spare parts and whole life technical
support. if any question,contact us in any time.
4. This machine is easy to operate? Do you provide the user manual to help me ?
Yes, we will provide the English user manual and can change the language as your requirement.The machine
is humanized designed, do not worry,it is easy to operate.
Technology Support :Provide Demo operation video for training ;If you have time,welcome to our company,will arrange engineers to show you the operation;
5. What is the payment way ?
We accept the payment terms: Bank transfer, Wester Union, Moneygram, Paypal, Alibaba Pay,Aliexpress Pay,Credit Card etc
