PS3 PS4 BGA Replacement Machine 220V 50HZ Digital Infrared Firmly Welding

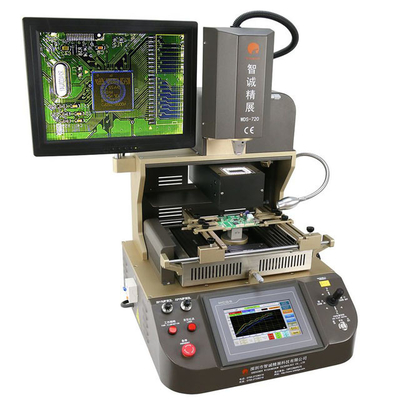

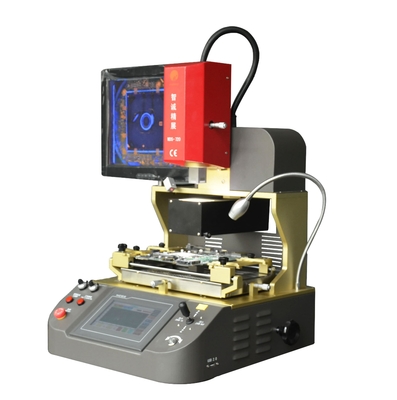

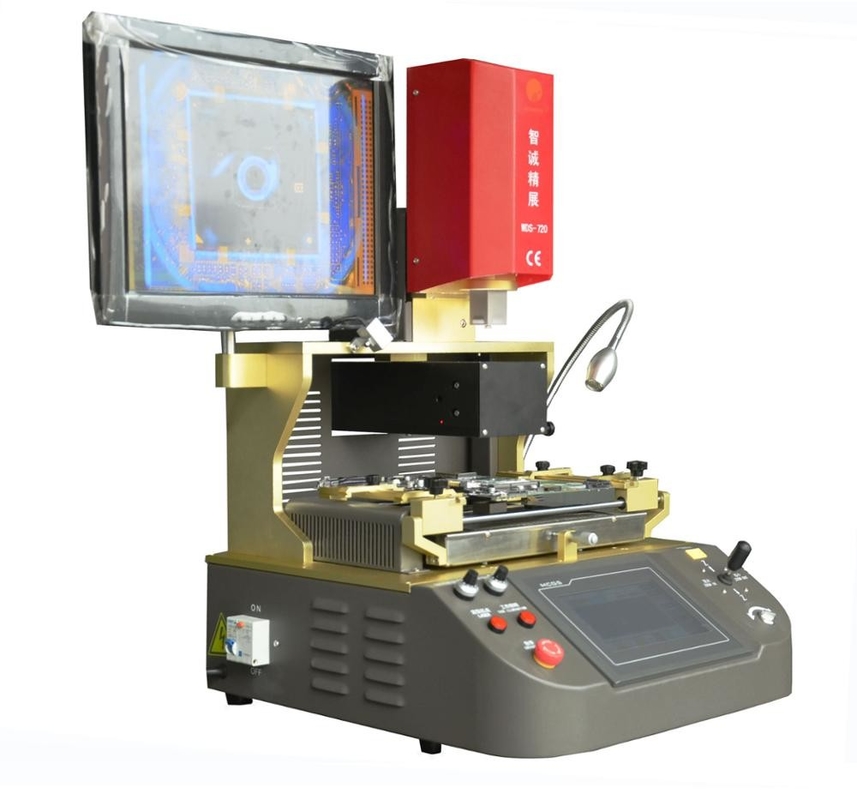

WDS-720 bga rework station Parameter:

 Detailed images

Independent 3 heating zones temperature control system
1.The upper and lower hot air heating, which can heat up at the same time from the top of he component to the bottom of the PCB; temperature precision control within ±1℃.

2.Adopted high precision K-type thermocouple close-loop control and PID parameter self-settingsystem; 4 temperature curves can be displayed with instant curve analysis function

and multi-group user data can be saved;temperature can be tested precisely through external measurement interface,curves canbe analysed,set and correct on the touch screen at any time.

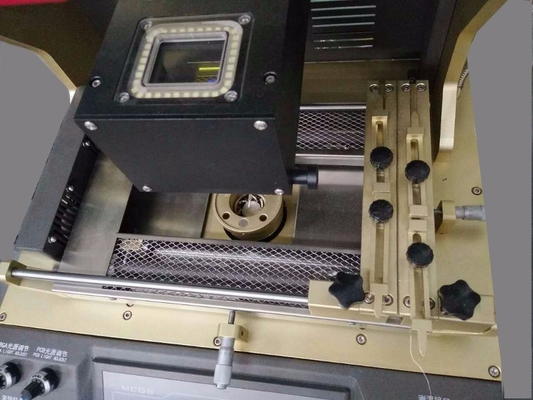

Precision optical alignment system
Using high definition and adjustable CCD color optical alignment system,beam split,amplification,lessening,fine adjustment and auto focus with the function that automatic color aberration resolution andbrightness adjustment,adjustable image contrast;equipped with 15 ” high definitionLCD monitor. iphone cpu repair

Multi-functional and humanized operation system
1.Adopting the HD touch human-machine interface;upper heating head and mounting head designed 2 in1;providing many kinds of titanium alloy BGA tuyere can be rotated in 360 degree for easy installationand replacement.

2.X,Y and R angle adopted micrometer fine-tuning,accuracy locating,precision can reach±0.01mm.

Accessories of WDS BGA rework station

Workshop

We are devoted to producing a perfect machine!

Machine Operation

Specific Repair steps:

1) Separate the BGA chip from mother board –we called desoldering
2) Clean Pad
3) Reballing  or replace a new BGA chip directly
4) Alignment/Positioning – Depend on experience ,silk frame ,optical camera
5) Replace a new BGA chip - we called Soldering

Moreover:

Free training will be provided!
1.We will provide you English instruction book and Demo Video to see how to use.
2.About the temperature setting ,please refer to the setting of the temperature parameters manualhere and to see how to set temperature.
3.if you still have any question, please contact us by E-mail/phone call/Alibaba online service.

Packaging and shipping

1,Standard export strong wooden package for bga rework station
2,Delivery in 2 workdays after payment confirm;
3,Shipping by TNT, UPS ,DHL,FEDEX (IE), or by air or by sea
4,Loading Port: ShenZhen or Hongkong

Our Service and Advantages

1.Your inquiry will be replied in 12 hours.
2.Original Manufacture to customers, with competitive price.
3.We provide one year warranty, free training and whole life technology support.
4.We can arrange the shipment by air, DHL,Fedex, UPS, and by Sea,etc for you, and will give you the tracking NO. after shipment.

5.Well-trained and Professional after-sales service team to support you.
6.Manual and Demo video CD will package with machine, It will show you how to use machine step by step.
7.Payment terms ,like T/T, Westerunion, PayPal is choosed by customers.

Pre-Sales Service:
* All productiong lines have adequate quality control and QA/QC inspectors work independently from the production line.All products passed CE & ISO certification.
After-Sales Service
* Offer free spare parts and service within 12 months of warranty,and all the other relative cost should be on the buyer's account.
* Provide Demo operation video for training.If you have time,welcome to our company,will arrange engineers to show you the operation,you can also test the machine by yourself.

why choose us?

1.We are the Manufacturer= own factory+ machine design+Sheet metal produced by ourself+spray the powder+ strong assemble the machine team + packaging+free training.
2.More than 11 years experiences in PCB BGA chips rework station, Over 20 R&D engineers.
3. Has been the biggest factory in the BGA rework field in China.
4.HUAWEI,TCL,ZTE,MEIZU,KONKA,LENOVO,FOXCONN vendor.
