Product Details:
|
| Machine Type: | Welding Equipment | Applicable Industries: | Building Material Shops, Home Use, Retail, Electronic Repair Centre |
|---|---|---|---|
| Warranty: | 1 Year Free, One Year For Free And Lifetime Professional After-sale Service | Voltage: | 110V/220V |
| Current: | Dependable | Rated Capacity: | 2500W |
| Rated Duty Cycle: | 100% | Dimensions: | L450*W470*H670mm |
| Usage: | Mobile Phone (Mini) BGA/IC Rework And Repair | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support |
| Weight: | 30kg | Upper Heating Power: | 1200W |
| Down Heating Power: | Second Zone 1200W | PCB Size: | Max 140*160mm Min 5*5 Mm |
| Applicable Chips: | Max 80*80mm Min 1*1 Mm | Temperature Control: | (high Precision K-sensor)(Closed Loop) , Independent Temp.controller |
| Locating Way: | V-shape Slot + Universal Jigs | Electrical Materials: | Driving Motor+smart Temp.controller+color Touch Screen |
| Mobile Phone Repair Tool: | Yes | Training: | Free Training And Maintenance |
| High Light: | 2500W Infrared BGA Rework Station,Samsung S7 Infrared BGA Rework Station,2500W samsung s7 mobile phone repair machine |
||

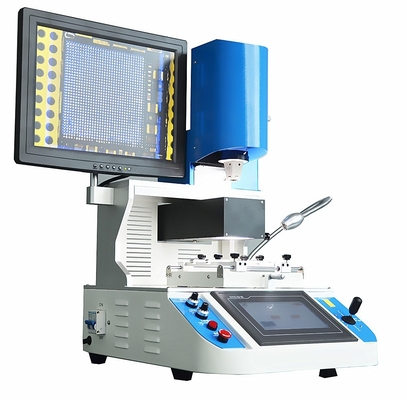

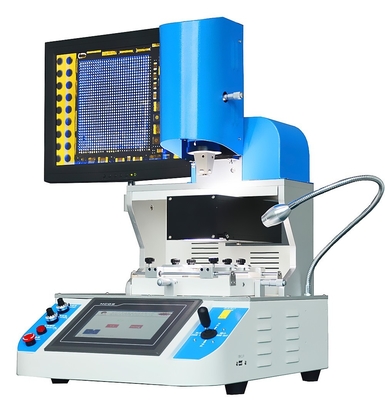

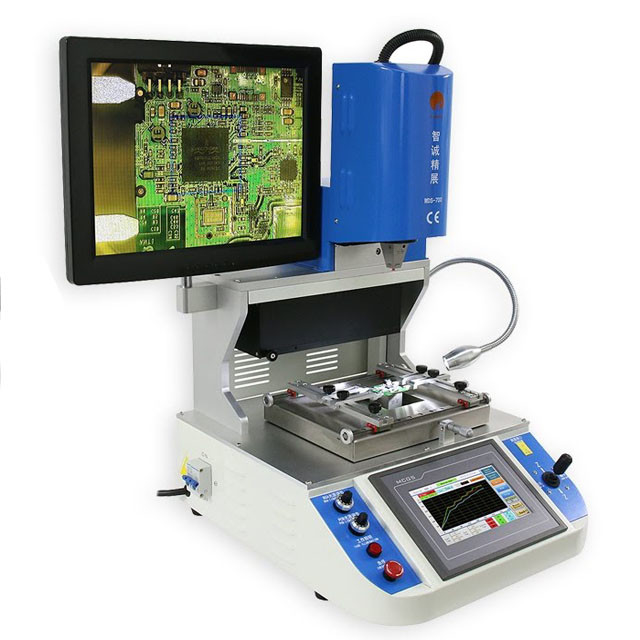

Top Technology 110V/220V WDS-700 auto mobile phone repair machine tools for samsung s7 edge iphone 7 xiaomi huawei
Our BGA Rework Station/ BGA reballing station are widely used to replace and repair the BGA chip in laptop, mobile phone, xbox360,ps3,etc.
The main user is repairing shops and factory to provide the after-sales service and rework.
How to separate BGA chip from motherboard?
How to replace a new BGA chip?
Repair steps:
1) Separate the BGA chip from mother board –we called desoldering
2) Clean Pad
3) Reballing or replace a new BGA chip directly
4) Alignment/Positioning – Depend on experience ,silk frame ,optical camera
5) replace a new BGA chip - we called Soldering
Parameter of WDS-700 mobile phone repair tool:
| Place of Origin |
Guangdong , China |
| Brand Name | Wisdomshow / WDS |
|
Moed Number |
WDS-700 ic reballing station |
| Superior function | Soldering and desoldering BGA Chip/Mini IC |
More details Parameter of WDS-700 mobile phone repair tool:
|
1 |
Superior function |
Auto soldering desoldering mounting BGA/IC |
|
2 |
Power supply |
AC 220V±10% 50/60Hz |
|
3 |
Total power |
Max 2500W |
|
4 |
Heater power |
Upper temp.zone 1200W,Down temp.zone 1200W |
|
5 |
Electrical material |
Driving motor+ smart temp.controller+color touch screen |
|
6 |
Temperature controlling |
(high precision K-sensor)(Closed Loop),independent temp.controller,the precision can reach ±1℃ |
|
7 |
Locating way |
V shape slot,PCB support jigs can adjust |
|
8 |
PCB size |
Max 140×160mm Min 5×5 mm |
|
9 |
Applicable chips |
Max 80×80mm Min 1×1 mm |
|
10 |
Overall dimension |
L450×W470×H670mm |
|
11 |
Temperature Interface |
1 pcs |
|
12 |
Weight of machine |
30KG |
|
13 |
Color |
Blue+White ps3 reball kit |
Full Specification of WDS-700 mobile phone repair tool
»»» Independent 2 heating zones temperature control system
1.The upper and lower heating zone,temperature precision control within ±1℃. which can heat up at the same time from the top of he component to the bottom of the PCB; 8 segment temperature control independently. mobile phone repair tool
2.Hot air district heating for BGA and PCB at the same time,the upper or lower temperature zones could be used alone and combine freely the energy of up and lower heating element.
3.Adopted high precision K-type thermocouple close-loop control and PID parameter self-setting system;

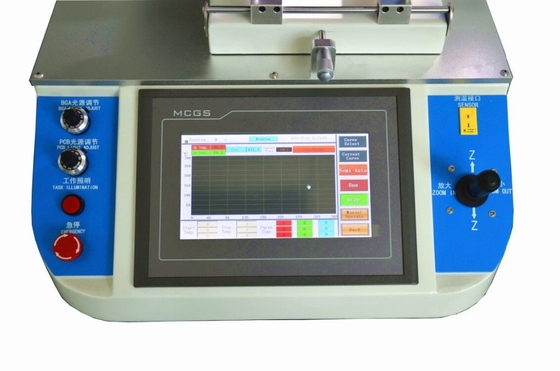

4 temperature curves can be displayed with instant curve analysis function and multi-group user data can be saved;temperature can be tested precisely through external measurement interface,curves can be analysed,set and correct on the touch screen at any time.
»»» Precision optical alignment system

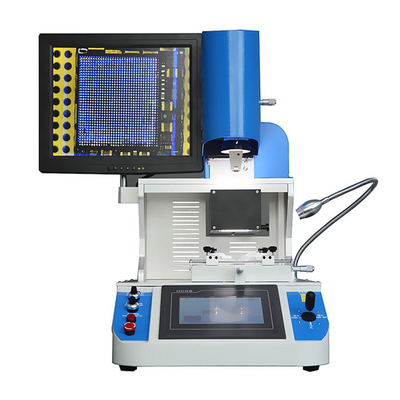

WDS-700 Using high definition and adjustable CCD color optical alignment system,beam split, amplification, lessening, fine adjustment and auto focus with the function that automatic color aberration resolution and brightness adjustment,adjustable image contrast; equipped with 15 ” high definition LCD monitor. bga reballing machine iphone ic remove machine Mini BGA rework station ps3 reball kit
»»» Multi-functional and humanized operation system
1.Adopting the HD touch human-machine interface;upper heating head and mounting head designed 2 in 1;providing many kinds of titanium alloy BGA tuyere can be rotated in 360 degree for easy installation and replacement.
2.X,Y and R angle adopted micrometer fine-tuning,accuracy locating,precision can reach ±0.01mm.
»»» Superior safety protection function
WDS-700 With the alarm function, after the BGA welding the machine can alarm by itself.In the case of temperature abuse, the circuit can power off automatically with the double over-temperature protection. Temperature parameter having password protection to prevent any modification.mobile phone repair tool
Packing & Shipping of WDS-700 mobile phone repair tool
1, Standard Export Wooden cases
2, Delivery in 3 working days after payment confirm;
3, Shipping by TNT,DHL,FEDEX , or by air or by sea
4, Loading port: Shenzhen or Hongkong.
Why WDS?
1. We are the Manufactuer = own factory+ machine design+Sheet metal produced by ourself +spray the powder+ strong assemble the machine team + packaging+free training;
2. Logo/Brand:Customer's designs and logos are welcome,we can silk-print your own logo company;
3. HUAWEI,TCL,ZTE,MEIZU,KONKA,LENOVO,FOXCONN vendor;
4. Have good market in Korea,Japan,NorthAfrica,Vietnam,Brazil,Turkey,India,Mexico and South Asia,The Mid-East and European countries;
5. 100% NEW from WDS factory;
6. Over 20 R&D engineers, with 10 year experience;
7. Over 100000 Global User;
8. All models approved CE ISO9001;
9. 100% QC inspect before shipment;
10. High quality & competitive price.
