Product Details:
|
| Condition: | New | Machine Type: | Bga Repair Amchine |
|---|---|---|---|
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Retail | Showroom Location: | None |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Hot Product 2019 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Bearing, Optical Prism | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Weight (KG): | 45KG |
| Voltage: | 110V/220V, 110V/220V | Current: | Dependable, Dependable |
| Rated Capacity: | 4200W | Rated Duty Cycle: | 100% |
| Dimensions: | L450*W480*H670mm, L450*W480*H670mm | Usage: | Bga Repair Amchine |
| Type: | Machines To Remove Icloud From Iphone | Bga Size: | Max60*60mm,Min1*1mm |
| Pcb Size: | Max260*260mm,Min5*5mm | Precision: | ±1℃ |
| Certificate: | ISO CE | Business Type: | Manufacturer With 10 Years' Domestic Experience |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | None |
| After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support | Port: | SHENZHEN |
| High Light: | IC ECU Infrared BGA Rework Station,Infrared BGA Rework Station,IC ECU ersa bga rework station |
||
Our BGA Rework Station/ BGA reballing station are widely used to replace and repair the BGA chip in laptop, mobile phone, xbox360,ps3,etc. The main user is repairing shops and factory to provide the after-sales service and rework.
Repair steps:
1) Separate the BGA chip from mother board –we called desoldering
2) Clean Pad
3) Reballing or replace a new BGA chip directly
4) Alignment/Positioning – Depend on experience ,silk frame ,optical camera
5) replace a new BGA chip - we called Soldering
BGA rework station could be used in :
Iphone 4/ 4s / 5 / 5s/ ipad motherboard repair.
SMD/ SMT / IC BGA rework
|

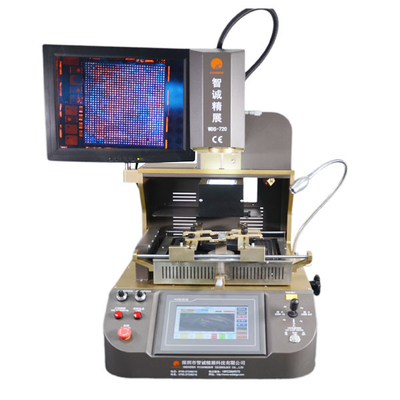

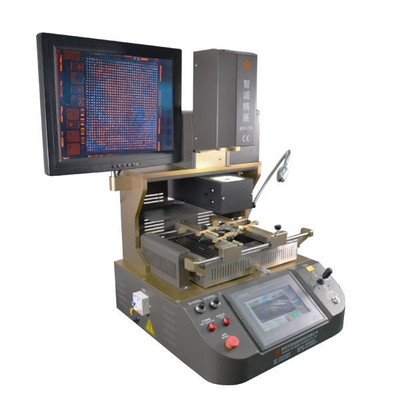

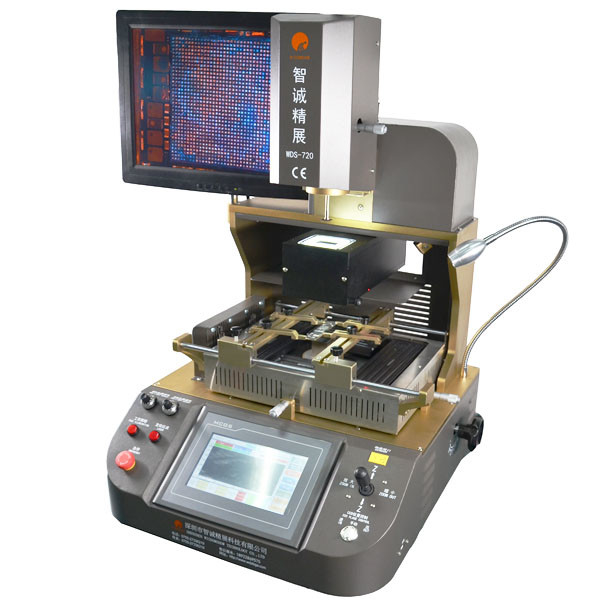

WDS-720 bga machine parameter
|
|
|
|
|||
|
Original place |
Brand Name
|
Wisdomshow chips reballing machine
|
|
|||
|
|
Mode Number
|
WDS-720 bga rework station
|
|
|||
|
|
Superior function
|
Soldering and desoldering bga chip
|
|
|||
|
Parameter of WDS-720 smartphone repair machine |
Power
|
AC 220V±10% 50/60Hz
|
|
|||
|
|
Total Power
|
4200W
|
|
|||
|
|
Heater power
|
upper temp.zone 1200w, second temp.zone 1200w, IR zone 1800w
|
|
|||
|
|
Temperature Controlling
|
K-type thermocouple close-loop control,independent temp.controller, the precision can reach ±1℃
|
|
|||
|
|
PCB size
|
Max 260*260mm Min 5*5mm
|
|
|||
|
|
Applicable chips
|
Max: 60*60mm Min 1x1mm
|
|
|||
1.The upper and lower hot air heating,which can heat up at the same time from the top of the component to the bottom of the PCB;bottom IR heating,temperature precision control within ±1℃.8 segment temperature control independently. iphone ic replace machine
2. Adopted high precision K-type thermocouple close-loop control and PID parameter self-setting

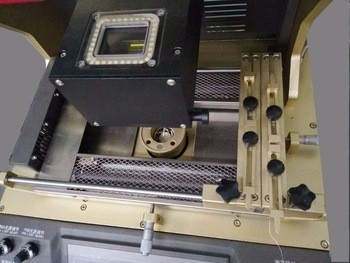

3. Using high definition and adjustable CCD color optical alignment system,beam split,amplification,lessening,fine adjustment and auto focus with the function that automatic color aberration resolution and brightness adjustment,adjustable image contrast; equipped with 15 " high definition LCD monitor.

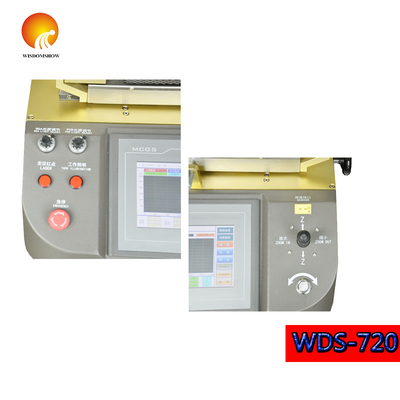

4.Adopting the HD touch human-machine interface;upper heating head and mounting head designed 2 in 1;providing many kinds of titanium alloy BGA tuyere can be rotated in 360 degree for easy installation and replacement.
5. X,Y and R angle adopted micrometer fine-tuning,accuracy locating,precision can reach ±0.01mm.
6. With the alarm function, after the BGA welding the machine can alarm by itself.In the case of temperature abuse, the circuit can power off automatically with the double over-temperature protection.Temperature parameter having password protection to prevent any modification.
Up-heater power: 1200W
Down-heater power: 1200W
IR power : 2800W
Using high definition + CCD color optical alignment system+ high definition LCD monitor
HD touch human-machine interface +8 segments temperature controlling at the same time.
Display 4 temperature curves and instant curve analysis function
With passwork protection to prevent any modication.
Double over-temperature protection.
We undestand buyers might be worried about ordering products from China.
Now our company have joined Alibaba Trade Assurance . By placing order through Alibaba, if the suppilerdoesn't meet your contract requirements for on-time shipment or Pre-shipment product quality, Alibaba.com may refund the payment as stated in your contract. Now our Trade a ssurance Limit is up to 84000 USD. You can check thiinformation from wisdomshow.en.alibaba.com. Pls Contact me as below guide, we are glad to give you the best price!
TNT, UPS ,DHL,FEDEX (IE), Aramex or by air or by sea
Paypal, Western Union, Escrow, T/T, Escrow, Aliexpress Pay, Others
|
Packaging
|
|
|
|
Size
|
|
|
|
Weight
|
60kg
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
