Product Details:
|
| Condition: | New | Machine Type: | Welding Manipulator |
|---|---|---|---|
| Applicable Industries: | Machinery Repair Shops, Laptop Motherboard Repair Shop | Showroom Location: | None |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC | Warranty: | 1 Year |
| Key Selling Points: | Accurate Temperature Control | Weight (KG): | 170 |
| Voltage: | 220V | Current: | N |
| Rated Capacity: | N | Rated Duty Cycle: | N |
| Dimensions: | L670*W780*H850mm | Usage: | Iphone Icloud Remove Machine |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support | Warranty: | 1 Year Iphone Icloud Remove Machine |
| Color: | Optional | Service: | Wholelife Technical Support |
| Application: | Chips Ic Pop QFN | Min.chips Pitch: | 0.15mm |
| Mounting Precision: | ±0.01mm | BGA Size: | 0.8mm-8cm |
| Thermo-couple Ports: | 4pcs | Optical Alignment Lens: | Motor Drive Can Move Front Back Right Left |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | None |

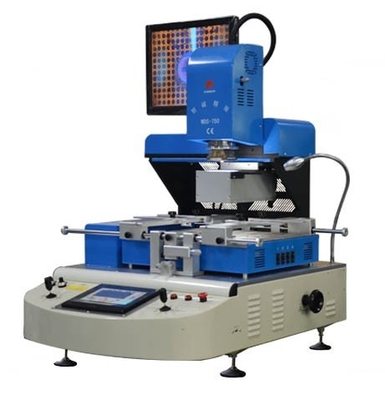

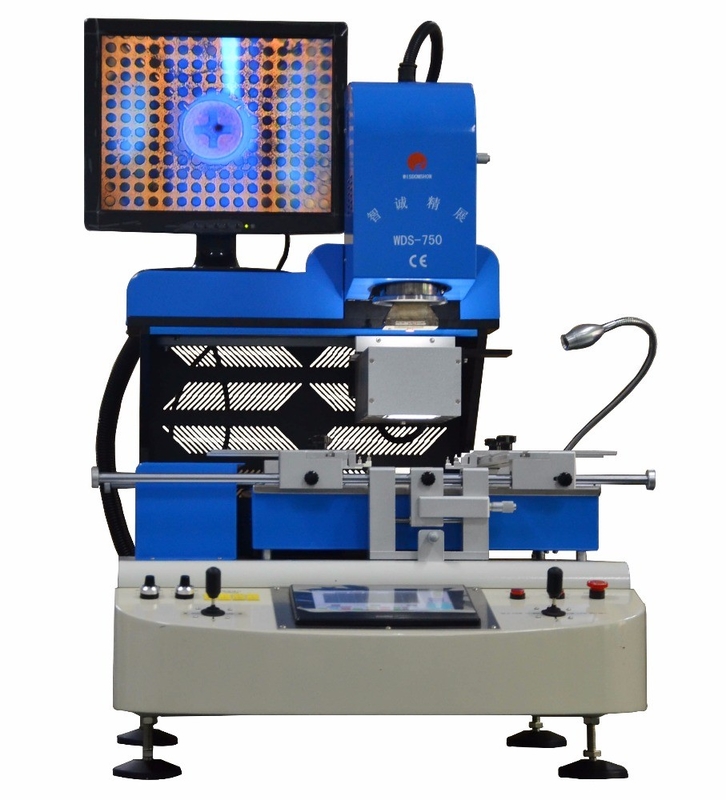

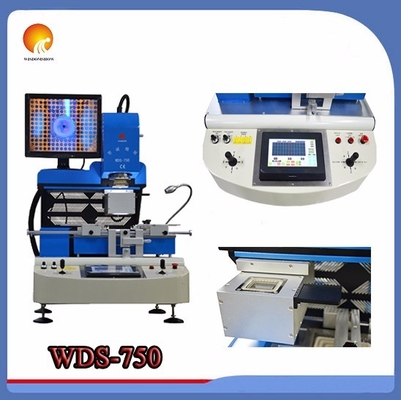

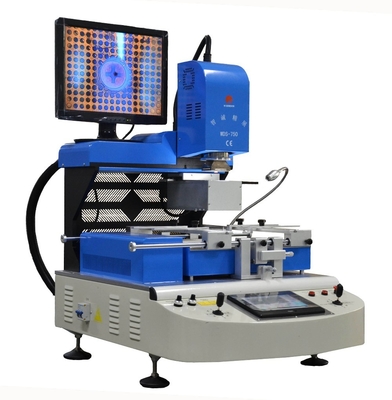

| High Light: | WDS-750 IR BGA Reballing Station,IR BGA Reballing Station PCB Motherboard,PCB Motherboard Rework Station |
||
| power | 6800W |
| Up heater power | 1200W |
| Down heater power | 1200W |
| IR heater power | 4200W(2400W control) |
| Power supply | (Single Phase) AC 220V±10 50Hz |

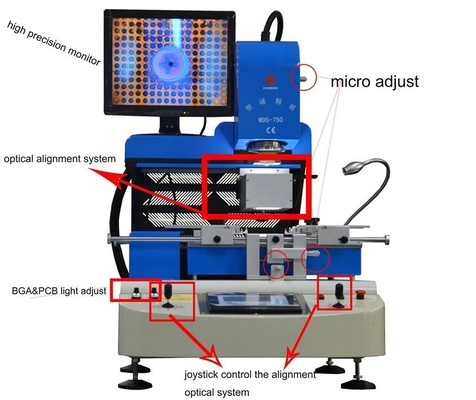

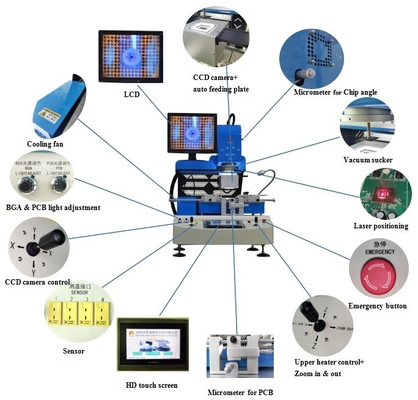

| Position way | Optical lens+ Vshape holder+laser positioning |
| Temperature control |
High precision K shape sensor(Closed Loop),up and down,independent,temperature,heating zone,Precision can reach±1℃ |
| Material | High sensitive touch screen+temperature control module+PLC+step drive |
| PCB Size | Max:500×450mm , Min: 10×10mm |
| Thermo-couple Ports | 4pcs |
| Chips magnification times | 2-30 |
| PCB thickness | 0.5-8mm |
| BGA size | 0.8mm-8cm |
| Min.chips pitch | 0.15mm |
| Mounting BGA weight | 1000G |
| Mounting precision | ±0.01mm |
| Size | L670×W780×H850mm |
| Optical alignment lens | Motor drive can move front back right left |
| Weight | About 90kg |
Why WDS?
1. We are the Manufactuer = own factory+ machine design+Sheet metal produced by ourself +spray the powder+ strong assemble the machine team + packaging+free training;
2. Logo/Brand:Customer's designs and logos are welcome,we can silk-print your own logo company;
3. HUAWEI,TCL,ZTE,MEIZU,KONKA,LENOVO,FOXCONN vendor;
4. Have good market in Korea,Japan,NorthAfrica,Vietnam,Brazil,Turkey,India,Mexico and South Asia,The Mid-East and European countries;
5. 100% NEW from WDS factory;
6. Over 20 R&D engineers, with 10 year experience;
7. Over 100000 Global User;
8. All models approved CE ISO9001;
9. 100% QC inspect before shipment;
10. High quality & competitive price.
Contact Person: Mr. Jack Du
Tel: +86-18688790572
Fax: 86-755-27336216
