Mobile Repairing Laptop BGA Machine 5300W PLC Control 1*1mm Chip

Mobile Repairing Laptop BGA Machine 5300W PLC Control 1*1mm Chip
Mobile Repairing Laptop BGA Machine 5300W PLC Control 1*1mm Chip Mobile Repairing Laptop BGA Machine 5300W PLC Control 1*1mm Chip Mobile Repairing Laptop BGA Machine 5300W PLC Control 1*1mm Chip Mobile Repairing Laptop BGA Machine 5300W PLC Control 1*1mm Chip Mobile Repairing Laptop BGA Machine 5300W PLC Control 1*1mm Chip Mobile Repairing Laptop BGA Machine 5300W PLC Control 1*1mm Chip

Large Image :  Mobile Repairing Laptop BGA Machine 5300W PLC Control 1*1mm Chip

Product Details:
Place of Origin: Guangdong, China
Brand Name: Wisdomshow(WDS)
Certification: CE ISO
Payment & Shipping Terms:
Price: $2,903.00/Sets
Packaging Details: mobile display repair machine<br>Standard export wooden box

Mobile Repairing Laptop BGA Machine 5300W PLC Control 1*1mm Chip

Description
Condition: New Machine Type: Welding Positioner
Applicable Industries: Machinery Repair Shops Showroom Location: None
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Ordinary Product Warranty Of Core Components: 1 Year
Core Components: PLC Warranty: 1 Year, 1 Year
Key Selling Points: Accurate Temperature Control Weight (KG): 70
Voltage: 220V / 110V Current: Dependable
Rated Capacity: 5300W Rated Duty Cycle: 100%
Dimensions: L650*W630*H850mm Usage: BGA Rework Station
Machine Type: WDS-600 Mobile Display Repair Machine Function: Mobile Display Repair Machine
PCB Size: Max.410*380mm,Min.10*10mm Applicable Chip Size: Max: 70*70mm, Min: 1*1mm
Precision: ±1℃ Temperature Inferface: 1pc
Temperature Control: K-type Thermocouple Sensor Closed Loop,up Down Test Temp. Independent Operation: High Definition Touch Screen,PLC Control
Locationg Mode: V-shape Card Slot, PCB Holder Can Be Adjustable After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: None After-sales Service Provided: Free Spare Parts, Video Technical Support, Online Support
High Light:

mobile repairing Laptop BGA Machine

,

Laptop BGA Machine 5300W

,

1*1mm BGA Chip Replacement Machine



Optical alignment mobile repairing tool and machines for laptop and phone



 Mobile Repairing Laptop BGA Machine 5300W PLC Control 1*1mm Chip 0







Product Description

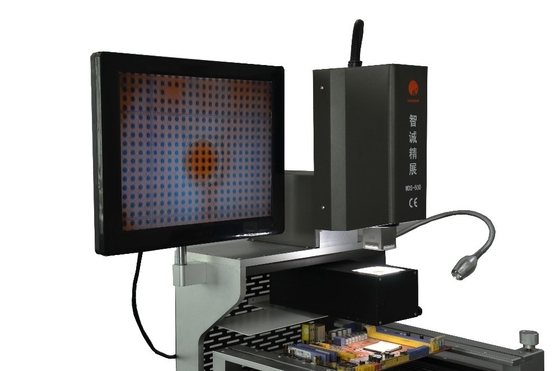

Precision Optical Alignment System

(High Resolution CCD Camera with optical lens)



Using high definition and adjustable CCD color optical alignment system,beam split,amplification,lessening,fine adjustment and auto focus with the function that automatic color aberration resolution and brightness adjustment,adjustable image contrast;equipped with 15 ” high definition LCD monitor.

Mobile Repairing Laptop BGA Machine 5300W PLC Control 1*1mm Chip 1





Independent 3 Heating Zones Temperature Control System

(Second Heating Zone Height Adjust Button & heating zone adjust switch)



1.The upper and lower hot air heating,which can heat up at the same time from the top of the component to the bottom of the PCB;bottom IR heating,temperature precision control within ±1℃.8 segment temperature control independently.



2.Hot air district heating for BGA and PCB at the same time,and large area IR heater preheating up for the bottom of PCB to avoid completely PCB deformation during reworking,the upper or lower temperature zones could be used alone and combine freely the energy of up and lower heating element.



3.Adopted high precision K-type thermocouple close-loop control and PID parameter self-setting system;4 temperature curves can be displayed with instant curve analysis function and multi-group user data can be saved;temperature can be tested precisely through external measurement interface,curves can be analysed,set and correct on the touch screen at any time.



Mobile Repairing Laptop BGA Machine 5300W PLC Control 1*1mm Chip 2





Mobile Repairing Laptop BGA Machine 5300W PLC Control 1*1mm Chip 3





Multi-functional and humanized operation system

(High Sensitive MCGS Touch Screen)



Adopting the HD touch human-machine interface;upper heating head and mounting head designed 2 in 1;providing many kinds of titanium alloy BGA tuyere can be rotated in 360 degree for easy installation and replacement.



Mobile Repairing Laptop BGA Machine 5300W PLC Control 1*1mm Chip 4

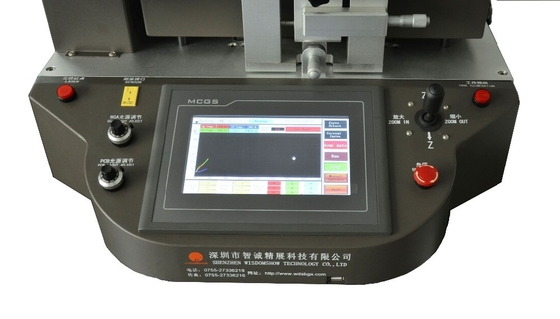

Perfect Design + Multi-functional Button

(Joystick,Laser position,K-sensor,PCB,BGA Light Adjust)

X,Y and R angle adopted micrometer fine-tuning,accuracy locating,precision can reach ±0.01mm.



Mobile Repairing Laptop BGA Machine 5300W PLC Control 1*1mm Chip 5



Superior Safety Protection Function

With the alarm function, after the BGA welding the machine can alarm by itself.In the case of temperature abuse, the circuit can power off automatically with the double over-temperature protection.Temperature parameter having password protection to prevent any modification.



Mobile Repairing Laptop BGA Machine 5300W PLC Control 1*1mm Chip 6







Parameters of WDS-600 BGA rework station



1

Power supply

AC 220V±10% 50/60Hz

2

Total power

Max 5300W

3

Heater power

Upper temp.zone 1200W,second temp.zone 1200W,IR temp.zone 2700W

4

Electrical material

Driving motor+PLC smart temp.controller+color touch screen

5

Temperature controlling

(high precision K-sensor) (Closed Loop),independent temp.controller,the precision can reach ±1℃

6

Locating way

V shape slot,PCB support jigs can adjust,laser light do fast centering and position

7

PCB size

Max 450×390mm Min 10×10 mm

8

Applicable chips

Max 80×80mm Min 1×1 mm

9

Overall dimension

L650×W630×H850mm

10

Temperature Interface

1 pcs

11

Weight of machine

60KG



Mobile Repairing Laptop BGA Machine 5300W PLC Control 1*1mm Chip 7



Buyer Must Read

Applications of Motherboard Repair Equipment



Business field

  •  Laptop and mother boards rework and repair.
  • Game consoles applications rework and repair.
  •  Small and medium size electronics assembly factories.
  • Military sophisticated applications rework and repair.
  • Medical equipment applications rework and repair.
  • Automotive applications rework and repair.
  • Light systems and LED applications.
  • Home appliance and personal Gadgets applications rework and repair.
  • Networking and communication applications rework, repair and assembly.
  • Power supply and control PCB applications rework, repair and assembly.

Components type

       • BGA on Flex printed circuit.

       • PTH connectors, card slots and sockets.

       • Metal components housing.

       • Micro lead frame.

       • PBGA with heat sink.

       • Processor plastic sockets.

       • Metal Shielding.

       • CSP and fine pitches BGA.

       • Plastic PLCC.

       • Through hole sockets.

       • Heavy Mass CCGA & CBGA.

       • Underfill or epoxy coated components.

       • QFN, VQFN and advanced design QFN.

       • Package over package (POP).



Our Advantage



1.Professional factory manufacturing bga rework station with over 10 years' experience,best production capability,best quality control,best service.
2.All models approved CE,Offer most competitive price.
3.100% QC inspection before shipment to ensure the machine delivered to customers’ end are
perfect.
4.Speedy and high quality customer service and whole-life after-sale service
5.Deliver goods to customer all over the world with speed and precision
6.Have own factory dealing with machine production and sheet metal.



Our Services



Pre-Sales Service:

* Your inquiry will be replied in 24 hours.

* All production lines have adequate quality control and QA/QC inspectors work independently from the production line. All products passed CE & ISO certification.

After-Sales Service
* Offer free spare parts and service within one year of warranty, but all the other relative cost should be on the buyer's account.
* Provide demo operation video or online guide for trainin. If you have time, you can come to our company, and we will arrange engineers to show you the operation.

* Provide lifetime technical support service.  24 hours /7 days online.

Mobile Repairing Laptop BGA Machine 5300W PLC Control 1*1mm Chip 8



Mobile Repairing Laptop BGA Machine 5300W PLC Control 1*1mm Chip 9



Packaging & Shipping

1. Individual standard export wooden box for WDS-600 mobile display repair machine;

2. Delivery in 2 workdays after payment received;

3. Shipped by sea, by air, or by express like DHL, UPS, TNT, EMS, FedEx etc;

4. Loading port: Shenzhen or Hongkong.

Mobile Repairing Laptop BGA Machine 5300W PLC Control 1*1mm Chip 10





Related accessories




Mobile Repairing Laptop BGA Machine 5300W PLC Control 1*1mm Chip 11







FAQ

Q1:Are you a trading company or factory?

A: We are a manufacturer of professional BGA repair and rework station/machines in Shenzhen,Guangdong.



 Q2: How many days can we get the machines? How many delivery ways can we choose?

 A: We can ship the machines within 2-3 days after the full payment but the specific time is decided by the exact shipping way you chose.

 3-7 days by DHL,Fedex, UPS,etc (Door to Door Service)

 3-5 days by Air to your airport (Door to Airport Service )

 25-35 days by Sea to the seaport(Port to Port Service)



Q3: How about the package ? Is it safe during the delivery ?

 A: All BGA rework machines are well packed by standard strong wooden carton with foam inside.



Q4: Do you provide warranty ? How about the after-sales service ?

 A: We have professional after-sales team, and we supply one-year warranty free for spare parts and lifetime technical support.



Q5: Is it easy to operate the BGA rework station machine? Do you provide a user manual to help us ?

 A: Yes, we will provide the English user manual.The machine is humanized designed, so do not worry, and it is easy to operate.





Hot Selling Product

             WDS-620                                              WDS-720                                          WDS-700

 BGA Rework Station                Mobile Phone Rework Station           Mobile Repair Machine

Mobile Repairing Laptop BGA Machine 5300W PLC Control 1*1mm Chip 12   Mobile Repairing Laptop BGA Machine 5300W PLC Control 1*1mm Chip 13Mobile Repairing Laptop BGA Machine 5300W PLC Control 1*1mm Chip 14
