● Manual & automatic modes are available ● Solder, desolder, mount, pick and replace the chip automatically ● Servo motor + Panasonic PLC control
|
Product Details:
|
| Condition: | New | Machine Type: | Welding Manipulator |
|---|---|---|---|
| Applicable Industries: | Home Use, Retail, Electronic Repair Centre | Showroom Location: | Egypt, United States, India, Algeria |
| Video Outgoing-inspection: | Not Available | Machinery Test Report: | Not Available |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC | Warranty: | 1 YEAR FREE |
| Key Selling Points: | High-accuracy | Voltage: | 110/220V, 110V/220V |
| Current: | Dependable | Rated Capacity: | 6800W |
| Rated Duty Cycle: | 100% | Dimensions: | L670*W780*H850mm |
| Usage: | Repair Motherboard | Total Power: | 6800W Max |
| Optical Alignment Lens: | Motor Drive Can Move Front Back Right Left | Position Way: | Optical Lens+ Vshape Holder+laser Positioning |
| Alignment: | CCD Alignment System With LCD | Repair Size: | Max 500*450mm,Min,10*10mm |
| BGA Size: | 0.5mm-8mm | Temperature Control: | Within ±1 Degree |
| High Light: | EMMC Chip Repair Machine,Chip Repair Machine 0.5mm 8mm BGA,0.5mm 8mm BGA Repair Machine |
||
|
Power supply
|
AC 110V/220V±10% 50/60Hz
|
|
Total power
|
Max 6800W
|
|
Heater power
|
Upper heater 1200W,bottom heater 1200W,IR heater 4200W(2400W is controlled)
|
|
Locating way
|
Optical camera+ V-shape card slot + adjustable PCB support jigs + laser position for fast location
|
|
Temperature controlling
|
(high precision K-sensor)(Closed Loop),independent temp.controller,the precision can reach ±1℃
|
|
Electrical material
|
Servo motor + PLC control + smart temp.controller + high sensitive touch screen
|
|
PCB size
|
Max 550×380mm Min 10×10 mm(customizable)
|
|
Applicable PCB thickness
|
0.5-8mm
|
|
Chip amplification multiple
|
1-200X
|
|
Chip size
|
0.2*0.4mm-9cm
|
|
Min. chip space
|
0.15mm
|
|
Max. mount loading
|
500G
|
|
Mounting accuracy
|
±0.01mm
|
|
Alignment system
|
Optical lens + HD industrial camera
|
|
Temperature Interface
|
4pcs
|
|
Tin spot monitoring
|
Optional external camera to monitor solder ball melting process during welding
|
|
Optical camera
|

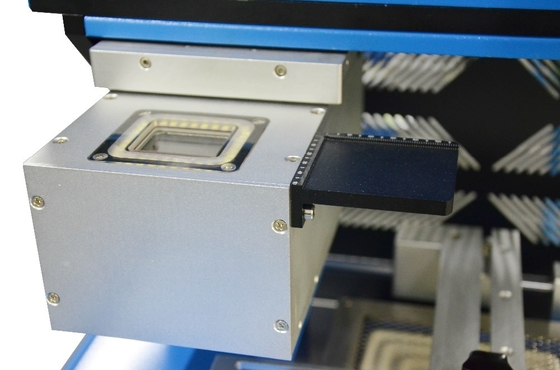

Can be removed front and back,left and right,prevent the dead angle
|
|
Overall dimension
|
L830×W670×H850mm
|
|
Weight
|
90KG
|
1,Standard export wooden package for bga rework station:108*93*83cm,160KG;
2,Delivery in 2 workdays after payment confirm;
3,Shipping by TNT, UPS ,DHL,FEDEX, or by air ;
4,Loading port: Shenzhen or Hongkong.LED module motherboard repair machine
