Product Details:
|
| Condition: | New | Machine Type: | Bga Repair Machine |
|---|---|---|---|
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Retail | Showroom Location: | None |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Bearing, Optical Prism | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Weight (KG): | 30 |
| Voltage: | 110V/220V | Current: | Dependable |
| Rated Capacity: | 2600W | Rated Duty Cycle: | 100% |
| Dimensions: | L450*W470*H670mm, L450*W470*H670mm | Usage: | Bga Repair Machine, Motherboard Rework Station |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | BGA Size: | Max50*50mm,Min1*1mm |
| PCB Size: | Max140*160mm,Min5*5mm | ||
| High Light: | 50*50mm Automatic BGA Rework Station,2600W WDS 700 IC Repairing Machine,2600W bga ic reballing machine |
||
Our BGA Rework Station/ BGA reballing station are widely used to replace and repair the BGA chip in laptop, mobile phone, xbox360,ps3,etc. The main user is repairing shops and factory to provide the after-sales service and rework.
Repair steps:
1) Separate the BGA chip from mother board –we called desoldering
2) Clean Pad
3) Reballing or replace a new BGA chip directly
4) Alignment/Positioning – Depend on experience ,silk frame ,optical camera
5) replace a new BGA chip - we called Soldering
BGA rework station could be used in :
Iphone 4/ 4s / 5 / 5s/ipad motherboard repair.
SMD/ SMT / IC BGA rework
|

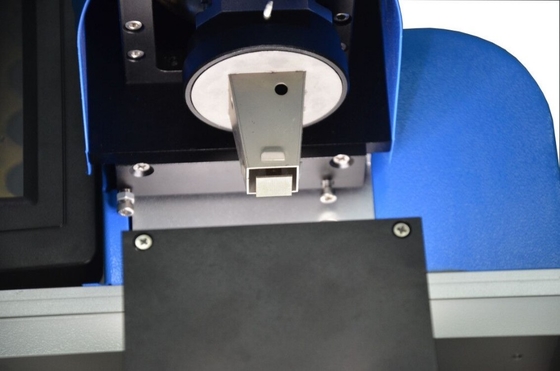

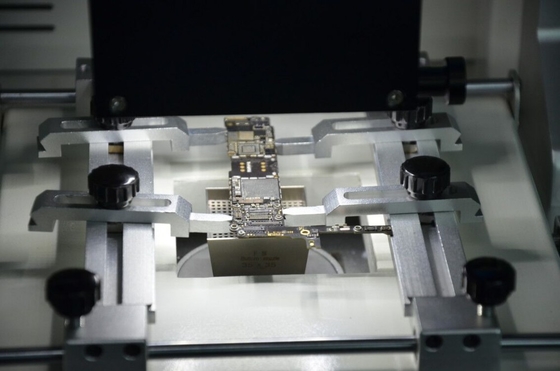

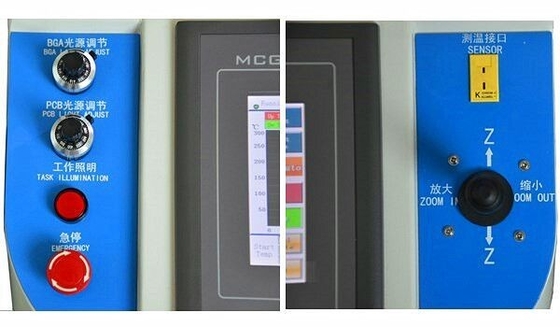

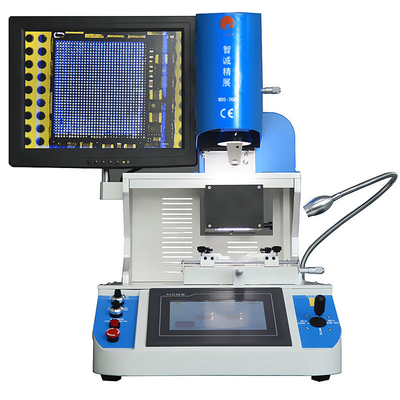

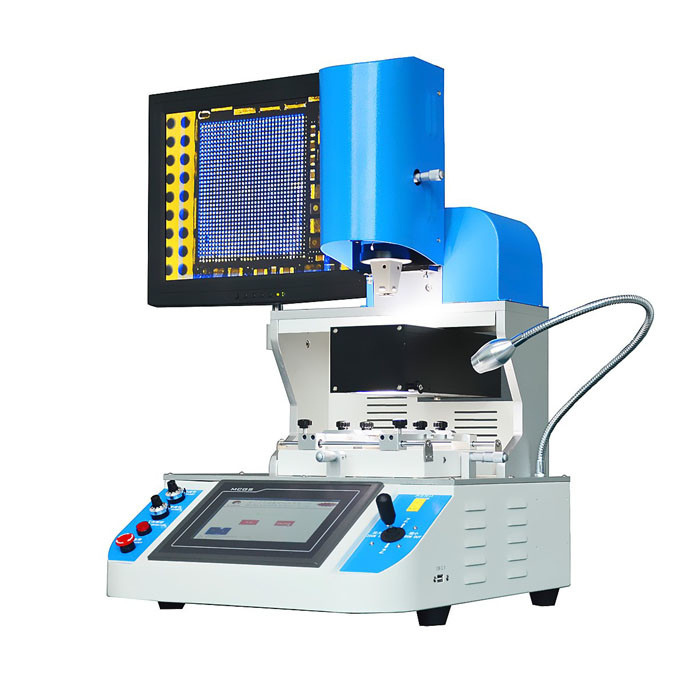

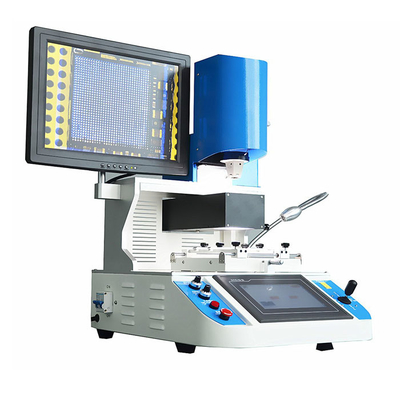

SPECIFICATION OF WDS-700 bga reballing machine
|
|
|
|
|||
|
Original place |
Brand Name
|
Wisdomshow chips reballing machine
|
|
|||
|
|
Moed Number
|
WDS-700 bga reballing machine
|
|
|||
|
|
Superior function
|
Soldering and desoldering bga chip
|
|
|||
|
Parameter of WDS-700 smartphone repair machine |
Power
|
AC 220V±10% 50/60Hz
|
|
|||
|
|
Total Power
|
Max 2600W
|
|
|||
|
|
Heater power
|
upper temp.zone 1200w, second temp.zone 1200w
|
|
|||
|
|
Temperature Controlling
|
K-type thermocouple close-loop control,independent temp.controller, the precision can reach ±1℃
|
|
|||
|
|
PCB size
|
Max:140x160mm . Min 5x5mm
|
|
|||
|
|
Applicable chips
|
Max: 50*50mm Min 1x1mm
|
|
|||
1.The upper and lower hot air heating,which can heat up at the same time from the top of the component to the bottom of the PCB;bottom IR heating,temperature precision control within ±1℃.8 segment temperature control independently. iphone icloud remove machine
2. Hot air district heating for BGA and PCB at the same time,and large area IR heater preheating up for the bottom of PCB to avoid completely PCB deformation during reworking,the upper or lower temperature zones could be used alone and combine freely the energy of up and lower heating element.
3. Adopted high precision K-type thermocouple close-loop control and PID parameter self-setting system; bga welding machine
4. Temperature curves can be displayed with instant curve analysis function and multi-group user data can be saved;temperature can be tested precisely through external measurement interface,curves can be analysed,set and correct on the touch screen at any time.
5. Using high definition and adjustable CCD color optical alignment system,beam split,amplification,lessening,fine adjustment and auto focus with the function that automatic color aberration resolution and brightness adjustment,adjustable image contrast; equipped with 15 " high definition LCD monitor.
6.Adopting the HD touch human-machine interface;upper heating head and mounting head designed 2 in 1;providing many kinds of titanium alloy BGA tuyere can be rotated in 360 degree for easy installation and replacement.
7. X,Y and R angle adopted micrometer fine-tuning,accuracy locating,precision can reach ±0.01mm.
8. With the alarm function, after the BGA welding the machine can alarm by itself.In the case of temperature abuse, the circuit can power off automatically with the double over-temperature protection.Temperature parameter having password protection to prevent any modification.
Up-heater power: 1200W
Down-heater power: 1200W
Using high definition + CCD color optical alignment system+ high definition LCD monitor
Multi-functional and humanized operation system
HD touch human-machine interface +8 segments temperature controlling at the same time.
Display 4 temperature curves and instant curve analysis function
With passwork protection to prevent any modication.
Double over-temperature protection.
We undestand buyers might be worried about ordering products from China.
Now our company have joined Alibaba Trade Assurance . By placing order through Alibaba, if the suppilerdoesn't meet your contract requirements for on-time shipment or Pre-shipment product quality, Alibaba.com may refund the payment as stated in your contract. Now our Trade a ssurance Limit is up to 26000USD. Pls Contact me as below guide, we are glad to give you the best price!
TNT, UPS ,DHL,FEDEX (IE), Aramex or by air or by sea
Paypal, Western Union, Escrow, T/T, Escrow, Aliexpress Pay, Others
|
Packaging
|
|
|
|
Size
|
|
|
|
Weight
|
60kg
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
1. WDS-700 BGA Rework Station * 1 pc
2. Alloy hot gas nozzles * 5 pcs
3. IR High Temperature Sucker * 5 pcs
4. Temperature measurementline * 1 pc
5. Brush * 1 pc
6. Fixture * 6 pcs
7. Plum blossom hander * 6 pcs
8. T nut and screw * 1 set
9. Screen * 1 pc
10. Nozzle * 1 pc
11. User Manual * 1 set
